Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1625L |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 18–20 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Generic Standard Name：Oscillating Knife Leather Cutting Machine
Industry Short Name：CNC Leather Cutter、Digital Leather Cutting Machine
Segmented Product Names：Shoe Leather Cutting Machine、Upholstery Leather Die-less Cutter
Description:

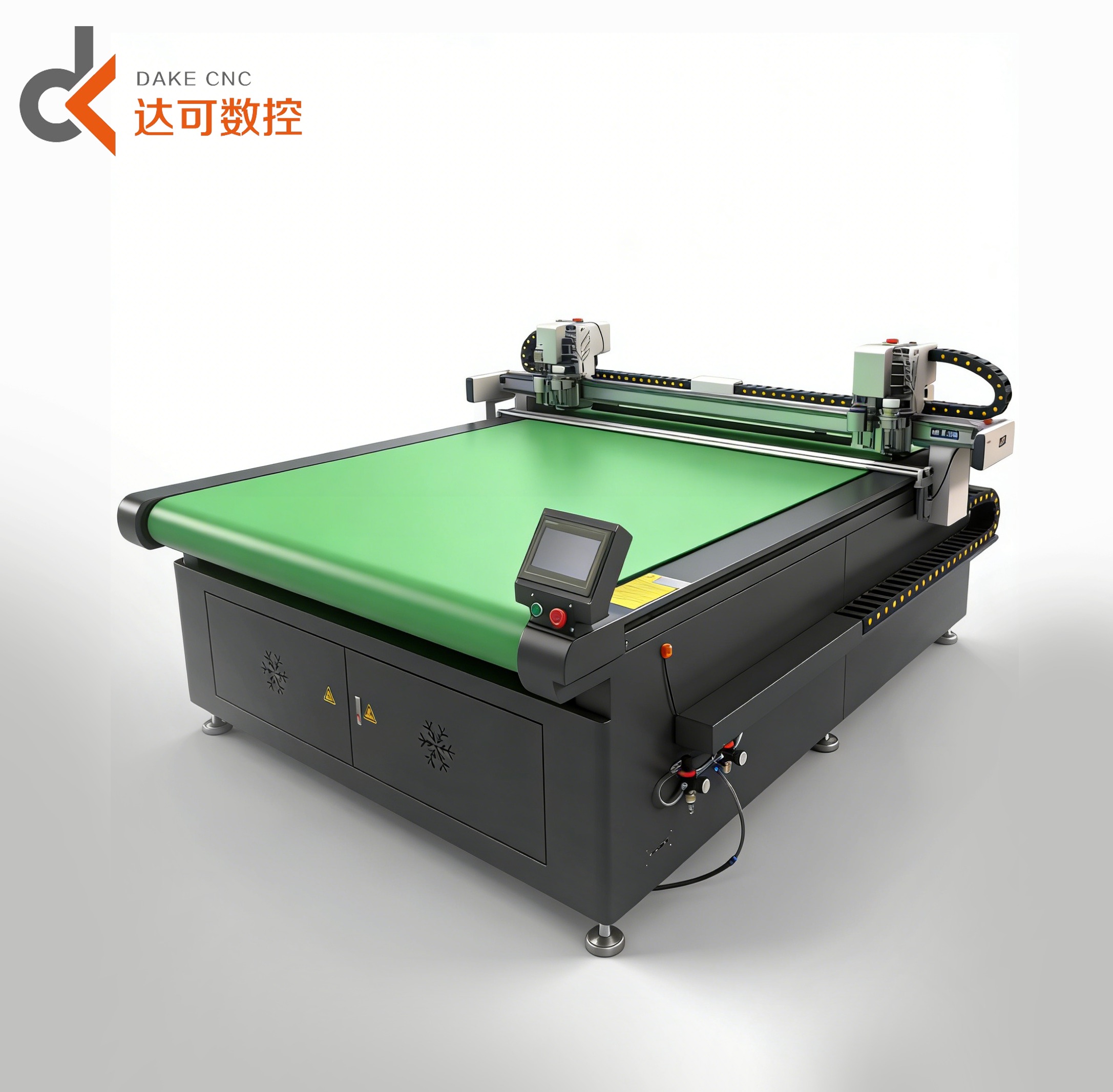

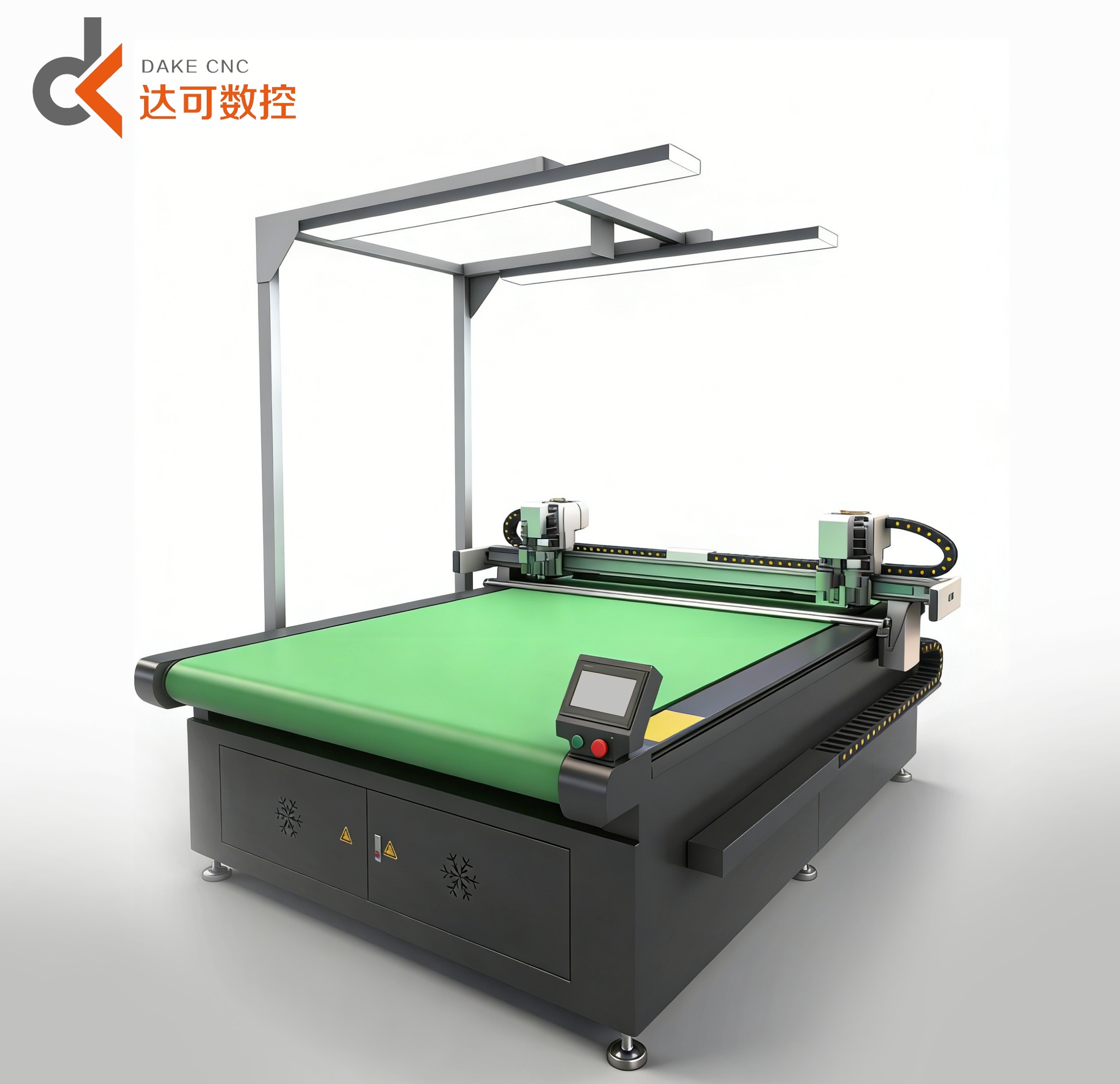

CNC oscillating knife leather cutting machine is dedicated to natural leather and synthetic leather processing. Equipped with high-frequency vibration cutter head, partition vacuum worktable and stable servo system plus intelligent nesting program. No cutting dies needed, finish cutting, creasing and punching at one time with smooth cut edge without leather cracking.
Applications:
Footwear industry: shoe upper leather, lining leather for sneakers & leather shoes. Luggage industry: handbag, wallet, belt leather cutting. Furniture & auto: sofa leather, car seat genuine leather and artificial upholstery leather.
Specifications:
| Name | DK1625S |
| Features | Vibration Knife Tool |
| Pneumatic Knife Tool | |
| Punching Tool | |
| Marking Pen | |
| Big CCA Camera | |
| Effective Working | 1600*2500mm |
| Area | |
| Total Machine Power | 11KW |
| Speed Adjustment | 0~2000m/s |
| Control System | Camera and projector layout software |
| Transmission system | Full rack |
| Cutting accuracy | ±0.01mm |
| Power | X-axis Motor power 400W, Each of the two motors on the Y-axis is 400W |
| Z-axis 100W, W-axis 100W | |
| Supported file formats: | AI, PLT, DXF, PDF, PCE, XML |
Competitive Advantage:
No mould cost required, ideal for small-batch customized leather production.
Neat incision avoids leather crack, effectively upgrading finished product quality.
Intelligent nesting raises leather utilization rate and cuts waste by over 10%.
Strong vacuum firmly fixes slippery leather to prevent shifting during high-speed cutting.
Multi-tool configuration supports cutting, creasing and punching to fulfill diversified processing demands.
