Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1625C |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 15–20 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Generic Standard Name: Carpet Oscillating Knife Cutting Machine
Industry Short Name:Carpet CNC Cutter / Digital Carpet Cutting Machine
Segmented Product Names:Auto Carpet Cutter、Floor Mat Rug Cutting Machine、Vibrating Blade Carpet Cutting Equipment
Description:

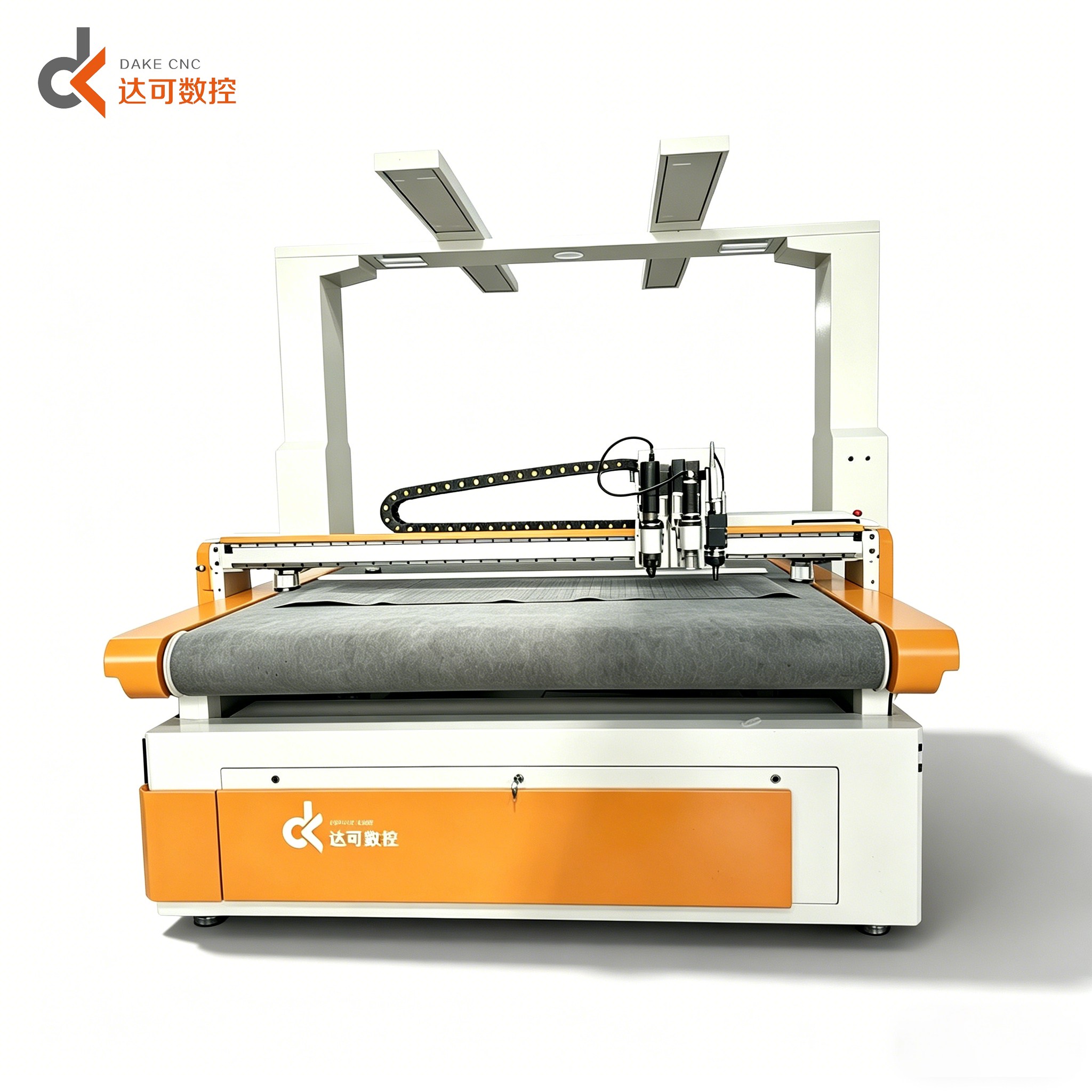

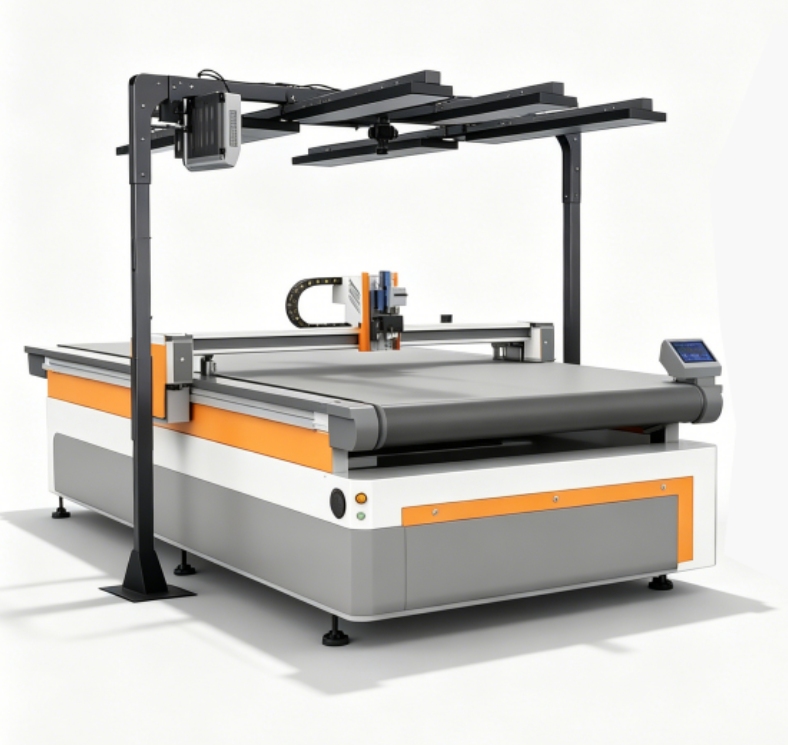

CNC oscillating knife carpet cutting machine adopts high-frequency oscillating cutting head and strong segmented vacuum adsorption platform. Equipped with stable servo driving system and intelligent automatic nesting software, no cutting dies required.Equipped with Big Camera For Printed Carpet working.It delivers tidy cutting edges without loose yarn or fraying, suitable for various thick & flexible carpet materials with high cutting accuracy and high efficiency.
Applications:
Auto field: PVC loop car mats, TPR carpet, XPE composite car floor mats, truck & RV customized carpets, trunk carpets.
Household field: entrance doormat, tufted rug, full-room carpet, non-slip pet mat, linen floor cushion.
Other: rubber gasket, composite sponge fabric and various upholstery material cutting.
Specifications:
| Name | DK1625/DK1825 Automatic Feeding Digital Knife Cutting Machine |
| Tools | Oscillation Knife Tool+Round Knife Tool+Pneumatic Knife Tool |
| Effective Working Area | 1600*2500mm |
| Total Machine Power | 11KW |
| Speed Adjustment | 0~2000m/s |
| Control and Drive | Dual Drive / High-Speed DSP-Controlled Servo Motor 0–100% Manual and Software Control |
| System | Dake Custom System / Ruida System (Multi Languages LCD Screen) |
| Transmission system | Servo motor, linear guide rail, full rack |
| Cutting accuracy | ±0.01mm |
| Power | X-axis Motor power 400W, Each of the two motors on the Y-axis is 400W |
| Z-axis 100W, W-axis 100W |
Competitive Advantage:
No custom cutting dies needed, greatly lowering mold cost and shortening lead time for small-batch customized carpet orders.
Clean cutting edge with no loose wool or yarn shedding, effectively improving finished carpet quality.
Built-in intelligent nesting software optimizes layout automatically, cutting raw material waste by over 12%.
High-power zoned vacuum system firmly fixes thick heavy carpets to avoid shifting during high-speed cutting.
Adjustable cutting speed fits thin fabric carpets and thick loop PVC carpets flexibly for higher production output.
Wide material adaptability allows one machine to process automotive, household and industrial cushion materials for diversified business.
