Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1325 |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 7–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Large Working Area Laser Cutter, Wide Format CO2 Laser Cutting Machine, Industrial Large Size Laser Engraving & Cutting Machine, Big Format Fabric Laser Cutting Machine with Big vision system, Oversized Nonmetal Laser Processing Machine
Description:

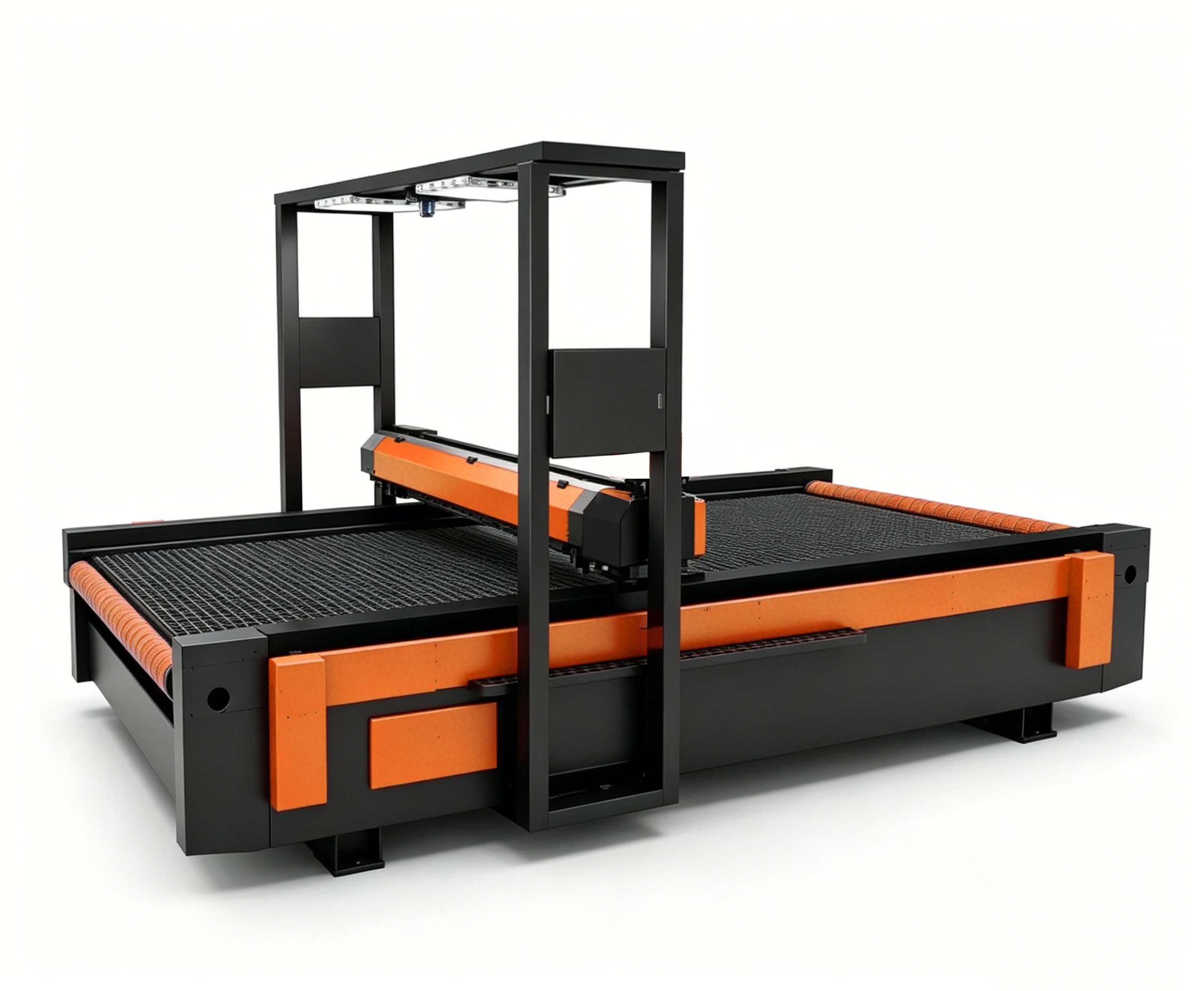

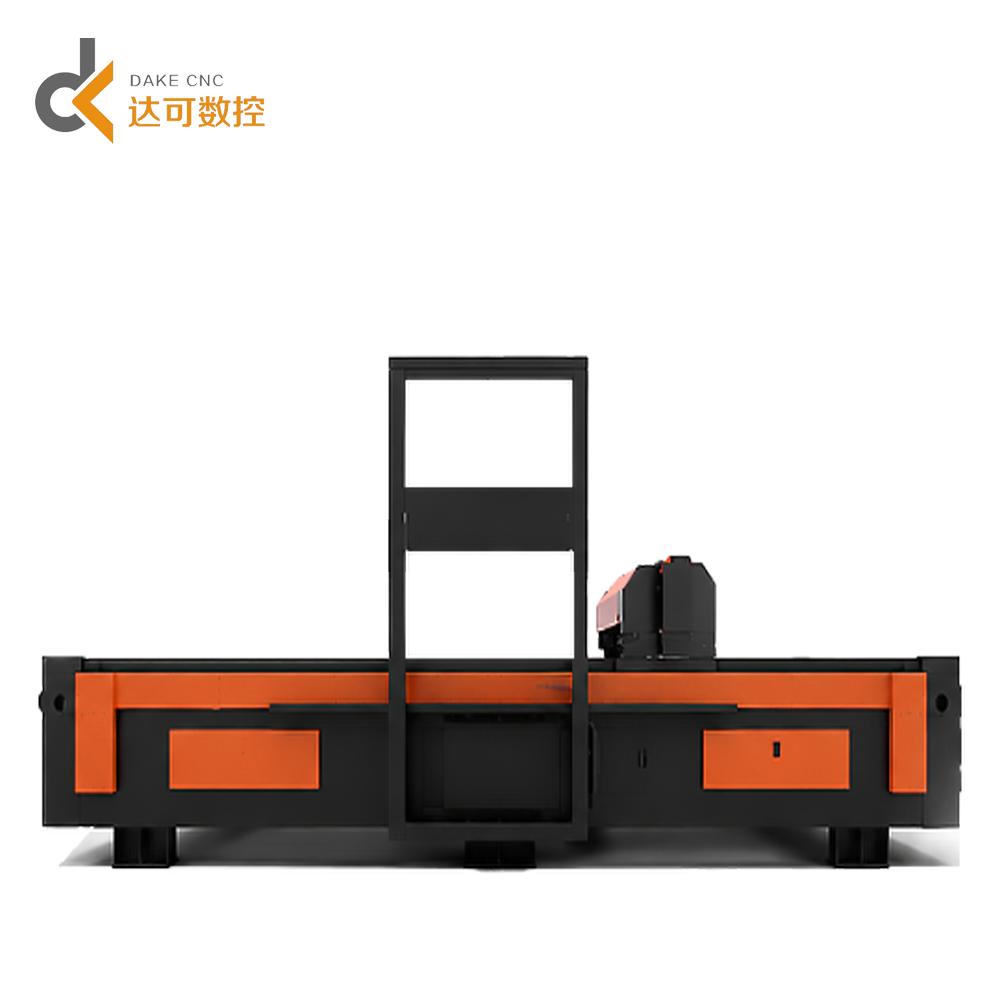

The large-format laser cutting machine is an industrial-grade CO2 laser processing device specifically developed for cutting ultra-large workpieces and mass production. It breaks through the size limitations of ordinary laser cutting machines, employing an ultra-large working area and a heavy-duty industrial integrated frame structure that is robust, durable, shock-resistant, and deformation-resistant, ensuring long-term high-speed and stable operation. Equipped with a high-power CO2 laser tube and a dual servo drive system, the laser beam is precisely concentrated, with stable power output, enabling high-precision cutting and smooth engraving effects on various large-area non-metallic materials. The machine features a full-coverage large vacuum adsorption platform that firmly secures ultra-long and ultra-wide flexible materials such as fabrics and leather, preventing wrinkling or displacement during processing. An optimized laser control and blowing system effectively prevents edge scorching, yellowing, and burrs, ensuring clean and flawless cut edges. Utilizing a mature large-vision intelligent control system, it supports pattern cutting, automatic material feeding, continuous cutting, and batch processing, significantly improving material utilization and production efficiency.
Applications:
This large-format laser cutting machine is widely used in various industries that require oversized and full-piece processing. In the textile and home textile industry, it is suitable for large-area cutting of curtains, sofa fabrics, bedding fabrics, carpets, window screens and large roll fabrics. In the garment and apparel industry, it supports whole-piece cutting of clothing fabrics, swimwear, sportswear and large embroidery patches. In the advertising and decoration industry, it is dedicated to large-size processing of acrylic, wooden board, MDF, PVC, KT board, paper art and decorative materials for large billboards, wall decorations and exhibition displays. In the automotive and interior industry, it processes automotive seat fabrics, car carpets, roof fabrics and interior thermal insulation materials. It is also widely applied in large leather materials, luggage fabrics, filter cloths, packaging materials, craft gifts and composite non-metal materials, meeting diverse processing needs of large-size integral cutting and mass nesting cutting.
Specifications:
| Machine model | 1325E/1530E |
| Machine power | 100W/130W/150W/180W/200W/300W/500W/600W |
| Processing dimensions | 1300x2500mm |
| Engraving speed | 0-36000mm/min |
| Cutting speed | 0-30000mm/min (Depending on material thickness) |
| Positioning accuracy | ±0.01mm |
| Work platform | Knife platform/Honeycomb platform, Lifting platform optional |
| Control system | ZY/RD is optional |
| Motor | Three-phase stepper motor/Servo motor optional |
| Cooling method | Water cooling |
| Supported file formats | AI,BMP,DXF,DST. PLT |
| Voltage | 220V,50HZ/60HZ(Customizable) |
| Machine size | 330×208×120cm |
| Machine model | 1325E/1530E |
| Machine power | 100W/130W/150W/180W/200W/300W/500W/600W |
| Processing dimensions | 1300x2500mm |
| Engraving speed | 0-36000mm/min |
| Cutting speed | 0-30000mm/min (Depending on material thickness) |
| Positioning accuracy | ±0.01mm |
| Work platform | Knife platform/Honeycomb platform, Lifting platform optional |
| Control system | ZY/RD is optional |
| Motor | Three-phase stepper motor/Servo motor optional |
| Cooling method | Water cooling |
| Supported file formats | AI,BMP,DXF,DST. PLT |
| Voltage | 220V,50HZ/60HZ(Customizable) |
| Machine size | 330×208×120cm |
Competitive Advantage:
This Big Camera laser cutting machine features ultra-large working size, solving the processing limitations of traditional small laser machines and supporting one-piece forming cutting of oversized materials without splicing, which greatly improves workpiece integrity and production efficiency. Adopting heavy-duty industrial frame and dual-servo synchronous drive structure, the machine runs more smoothly with higher precision and stronger stability, suitable for long-time uninterrupted industrial mass production. The full-size vacuum adsorption platform ensures overall flat fixation for large roll fabrics and thin materials, effectively avoiding material displacement, wrinkling and cutting errors. Equipped with upgraded high-power laser source and optimized air blowing system, it achieves zero-yellowing, burr-free and smooth cutting edges for both soft fabrics and hard non-metal plates. The intelligent automatic nesting function optimizes material layout, reduces material waste and saves production costs. In addition, the machine supports multi-material universal processing, with wide applicability, simple operation, low maintenance cost and long service life, which is more cost-effective than traditional cutting equipment and ordinary laser machines, helping customers realize high-efficiency and high-quality large-scale production.
