Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | 1325 |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Price: | USD 3500-7000 per set (based on configuration) |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 7–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Large Format Laser Engraving Machine, Big Size CO2 Laser Engraver, Industrial Large-area Laser Engraving & Cutting Machine, Oversized Non-metal Laser Carving Machine, Wide Format Laser Processing Machine
Description:

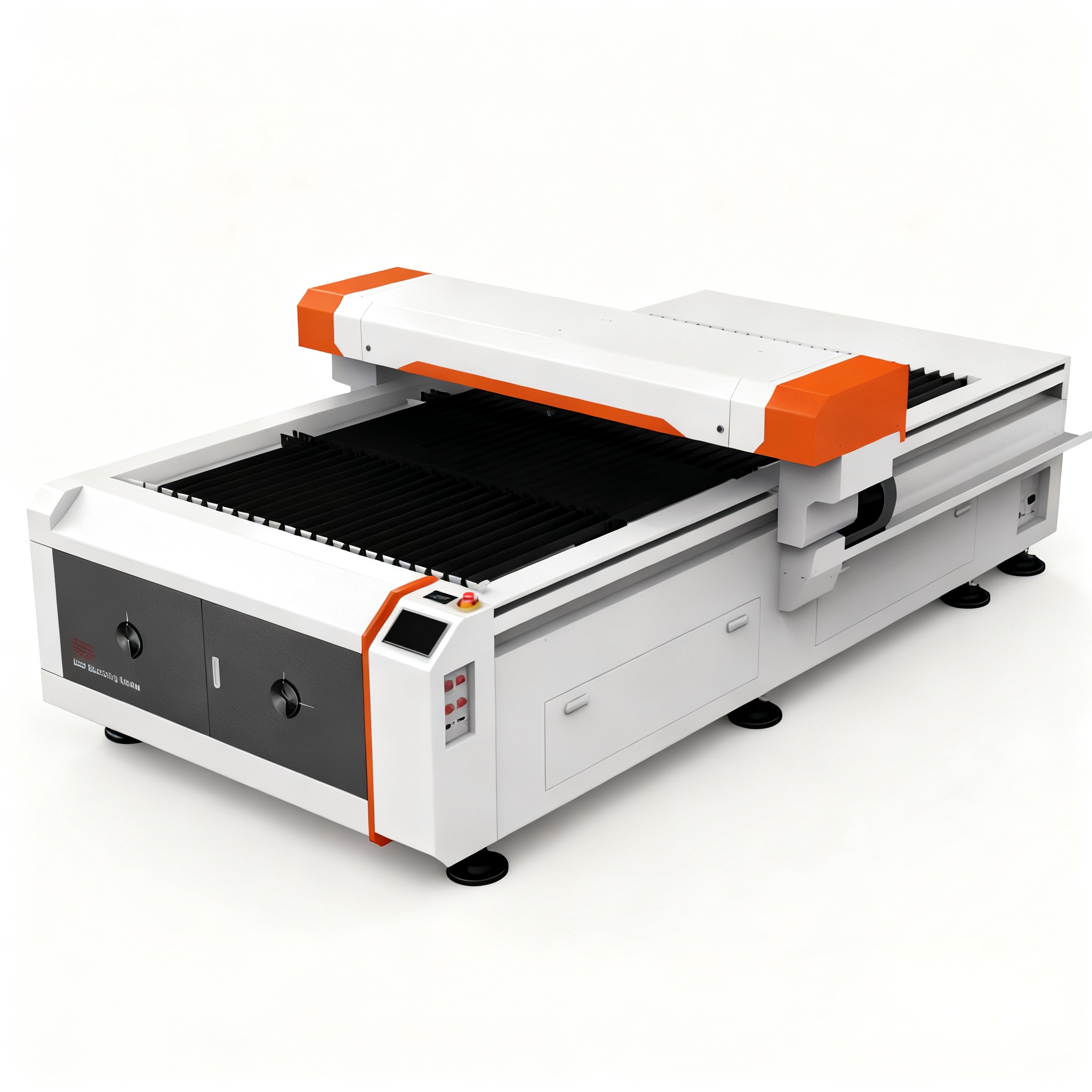

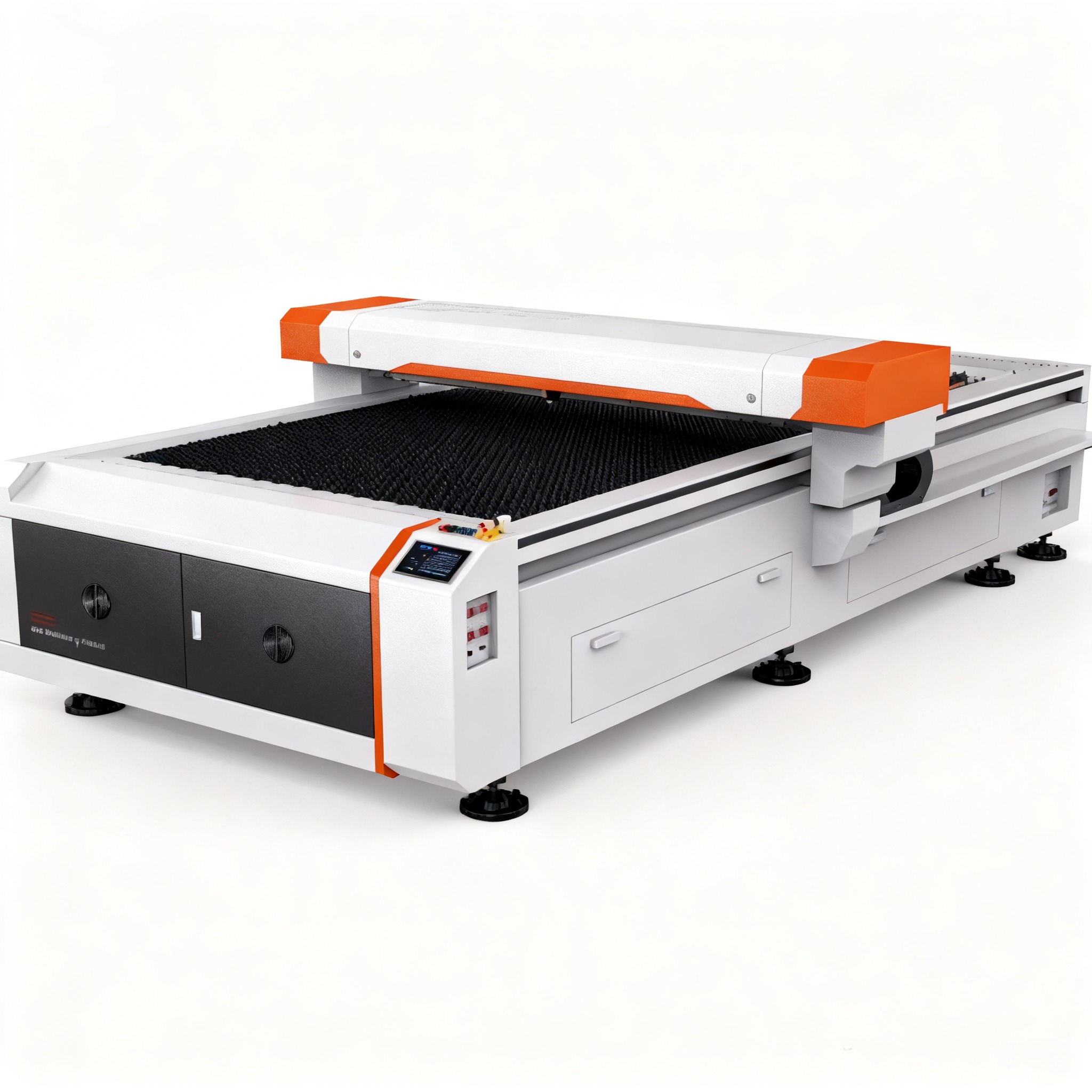

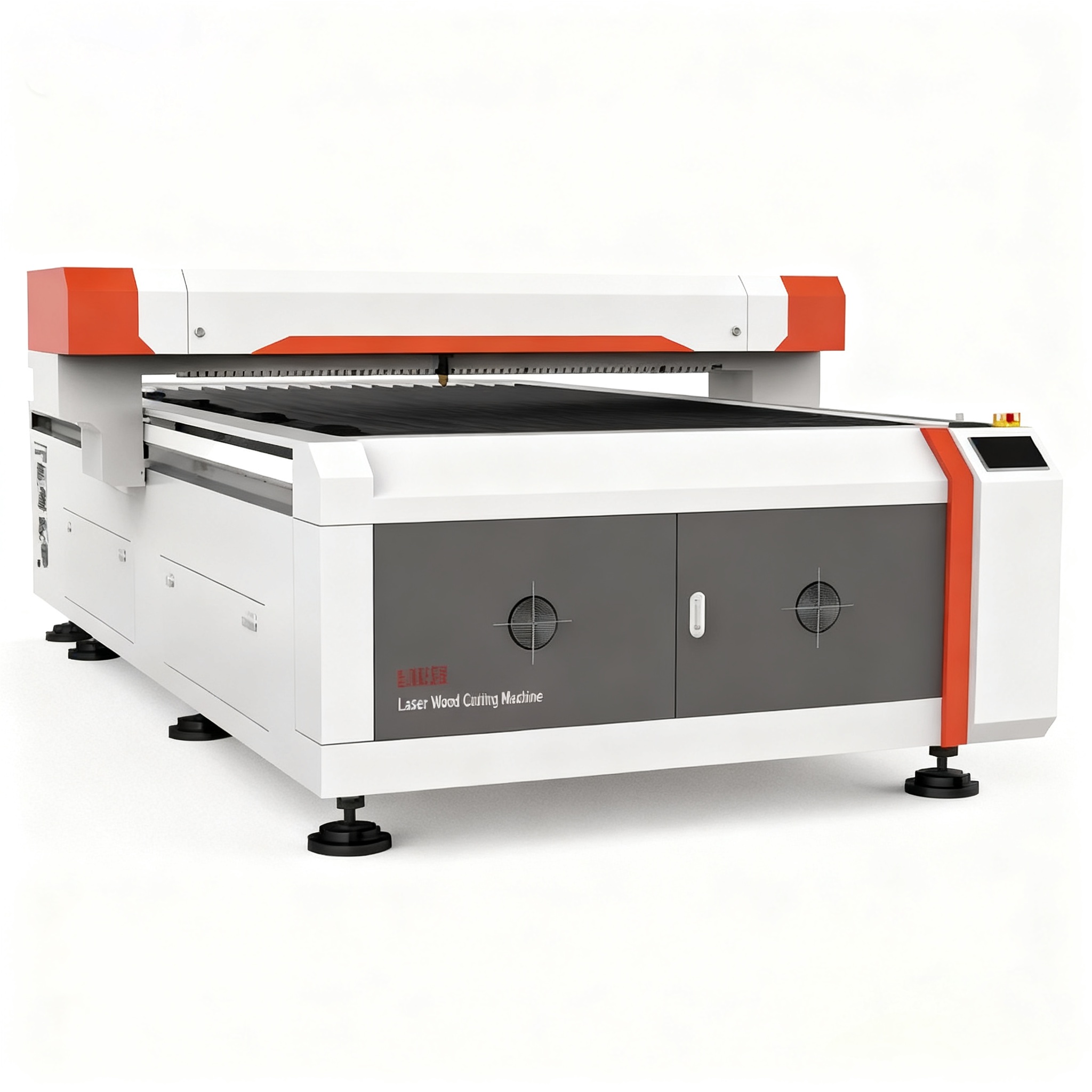

Large Size Laser Engraving Machine is a professional industrial laser processing equipment designed for ultra-large area engraving and cutting production. Equipped with an extended super-large working stroke and heavy-duty integral welded frame, the machine features high rigidity, anti-vibration and deformation resistance, ensuring stable and high-precision operation during long-time large-area engraving work. Adopting high-stability CO2 laser source with fine and uniform laser beam, the machine realizes ultra-fine gradient engraving, clear texture and consistent depth on large workpieces, effectively solving the problems of uneven engraving and blurred patterns of ordinary small laser machines. The whole machine is equipped with high-speed synchronous transmission system, which guarantees smooth operation and high processing flatness for oversized materials. Matched with full-range vacuum adsorption and honeycomb dual platform, it can stably fix large fabrics, leathers and board materials without warping or shifting. The intelligent Ruida control system supports large-format graphic import, automatic splitting, seamless splicing engraving and whole-piece integral processing. With optimized laser blowing and smoke exhaust system, the engraving surface is clean and flawless without burning or yellowing. It is specially developed for large-area decorative engraving, customized artwork and industrial batch processing scenarios.
Applications:
This large-size laser engraving machine has powerful large-area processing capabilities and covers a wide range of industries. In the furniture and woodworking industry, it is used for large-area pattern engraving, texture carving and hollow decoration on wooden boards, MDF, bamboo panels and furniture decorative plates. In the advertising and decoration industry, it is applied for large-size acrylic engraving, PVC board carving, billboard pattern making and wall decoration artwork processing. In the textile and home textile industry, it is suitable for large-area fabric hollow carving, sofa cloth pattern engraving, curtain decorative carving and large leather surface pattern processing. In the craft and gift industry, it produces large murals, decorative paintings, oversized craft ornaments and customized artworks. In addition, it can process paper products, rubber materials, composite plates and various non-metal materials, supporting both whole-piece large-format engraving and multi-piece nested batch cutting, fully meeting diversified large-size customized production needs.
Specifications:
| Machine model | 1325E/1530E |
| Machine power | 100W/130W/150W/180W/200W/300W/500W/600W |
| Processing dimensions | 1300x2500mm |
| Engraving speed | 0-36000mm/min |
| Cutting speed | 0-30000mm/min (Depending on material thickness) |
| Positioning accuracy | ±0.01mm |
| Work platform | Knife platform/Honeycomb platform, Lifting platform optional |
| Control system | ZY/RD is optional |
| Motor | Three-phase stepper motor/Servo motor optional |
| Cooling method | Water cooling |
| Supported file formats | AI,BMP,DXF,DST. PLT |
| Voltage | 220V,50HZ/60HZ(Customizable) |
| Machine size | 330×208×120cm |
Competitive Advantage:
This large-size laser engraving machine has prominent advantages in large-format processing compared with conventional laser equipment. Firstly, the ultra-large working area supports one-piece molding processing of oversized workpieces without splicing, ensuring the integrity and beauty of patterns and greatly improving product grade. Secondly, the industrial heavy-duty frame and high-precision transmission structure ensure stable high-speed operation, uniform engraving depth and consistent pattern fineness in full range, effectively avoiding position deviation and pattern distortion. Thirdly, the upgraded high-speed engraving algorithm greatly improves large-area engraving efficiency, solving the problem of slow speed of traditional large laser machines. Fourthly, the dual-purpose large platform adapts to both soft flexible materials and hard board materials, realizing one machine for multiple uses and reducing customer equipment investment. In addition, the equipment features low noise, low failure rate and long continuous working time, suitable for factory industrial mass production. The intelligent splicing and typesetting function improves material utilization rate, while simple operation reduces labor cost, making it highly cost-effective for large-format engraving and cutting enterprises.
