Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | 1625G |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 10–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Generic Standard Name ：Composite Materials Oscillating Knife Cutting Machine
Industry Short Name ：CNC Composite Cutter、Digital Composite Cutting Machine
Segmented Product Names ：Multi-layer Composite Fabric Cutting Machine、Foam Composite Cutting Equipment
Description:

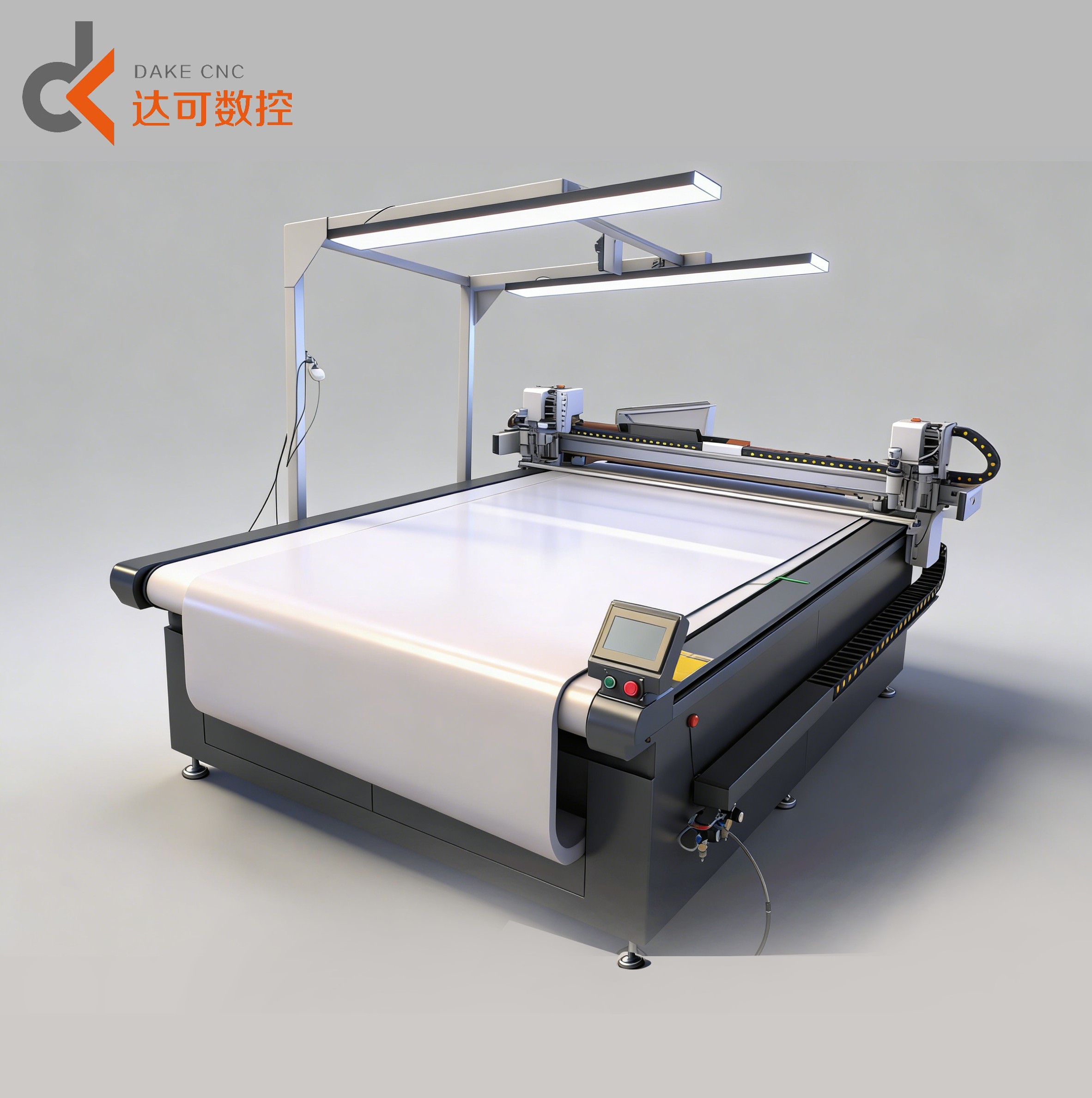

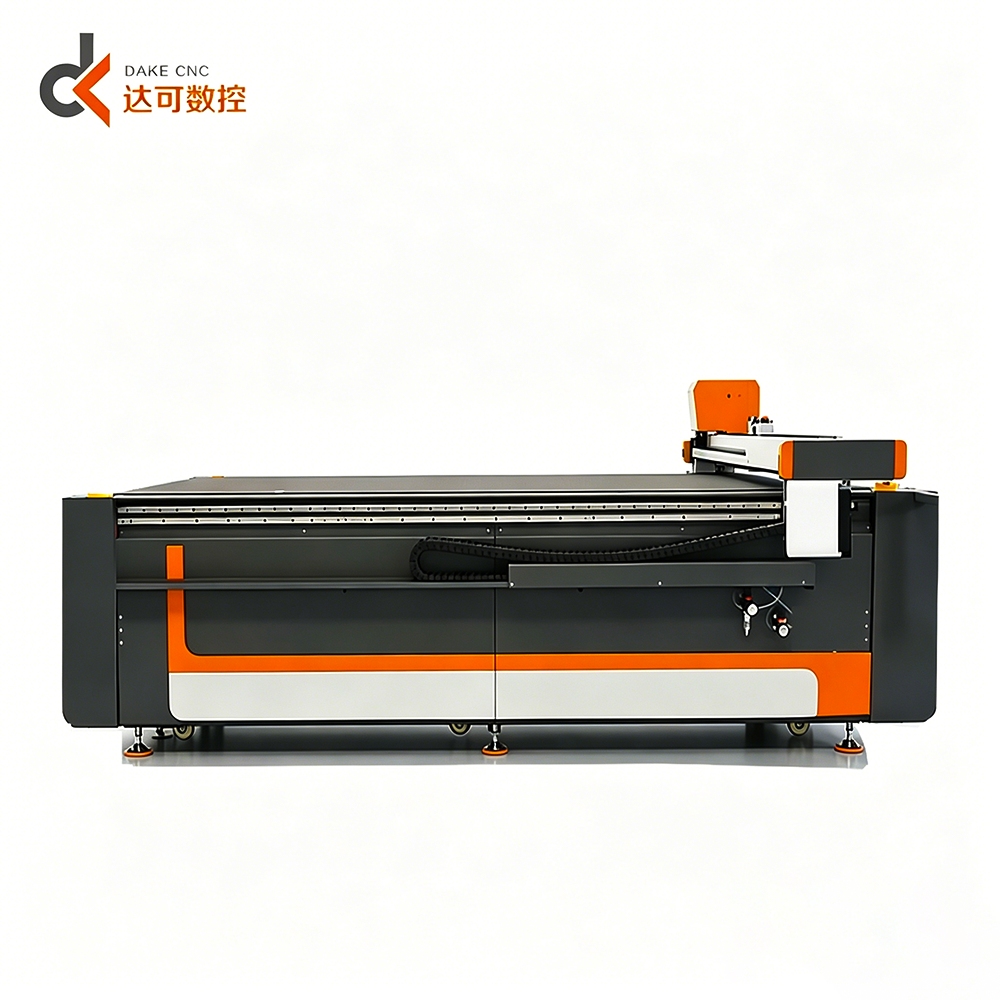

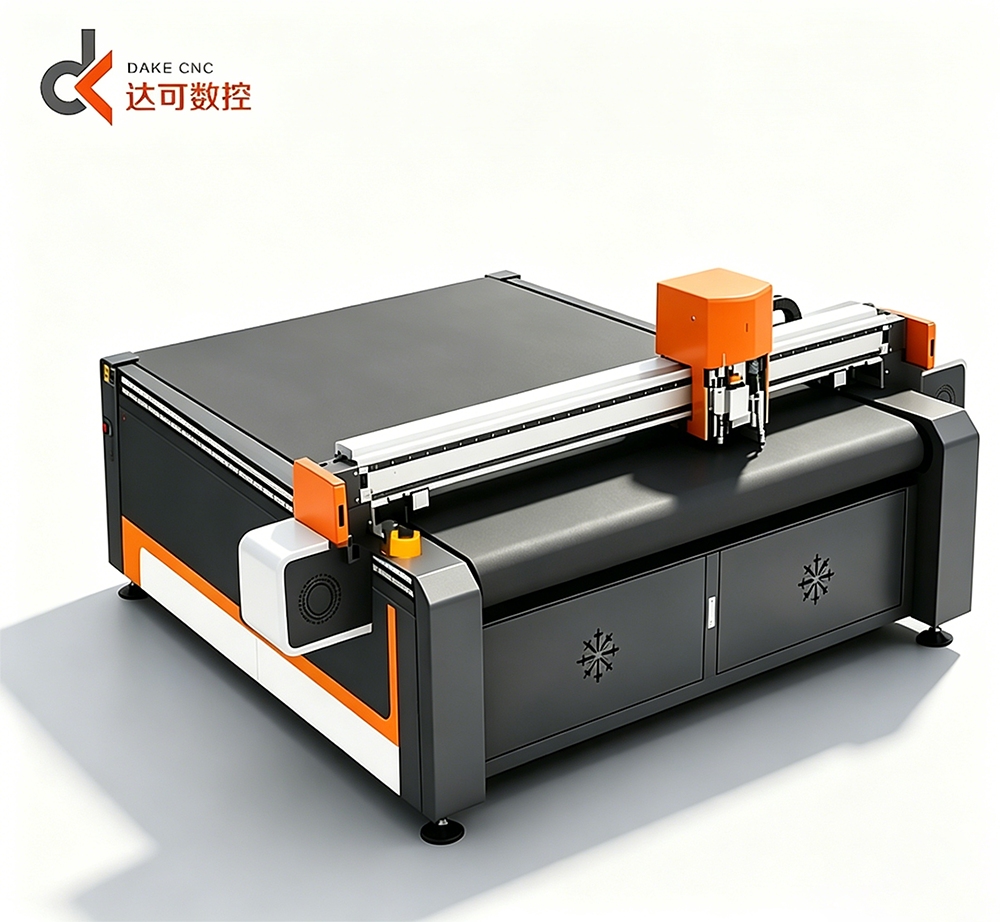

CNC oscillating knife composite materials cutting machine is engineered for diversified laminated composite materials. Equipped with high-frequency oscillating cutting head and segmented high-power vacuum adsorption worktable, matched with stable servo driving system and intelligent automatic nesting software. It needs no custom cutting dies and finishes full cut, half cut, creasing and punching in one operation, featuring tidy cut edge without layer delamination and high processing precision.
Applications:
Automotive industry: composite sound insulation cotton, composite floor mats, instrument panel composite cushions and various interior composite accessories.
New material industry: carbon fiber prepreg, glass fiber fabric, aluminum foil bonded foam, rubber composite sealing gaskets.
Other industries: luggage composite lining, multi-layer composite garment fabrics, fire-resistant composite felt and soft composite padding materials.
Specifications:
| Name | DK1625/DK1825 Automatic Composite Digital Knife Cutting Machine |
| Tools | Vibration knife tool+Round knife tool |
| Marking Pen | |
| Effective Working | 1600*2500mm |
| Area | |
| Total Machine Power | 11KW |
| Speed Adjustment | 0~2000m/s |
| Cutting thickness | ≤10mm |
| System | RD System (Multi Languages LCD Screen) |
| Transmission system | Imported Servo motor, linear guide rail, full rack |
| Cutting accuracy | ±0.01mm |
| Power | X-axis Motor power 400W, Each of the two motors on the Y-axis is 400W |
| Z-axis 100W, W-axis 100W |
Competitive Advantage:
No cutting mould required, saves die manufacturing cost and suits small-batch custom production of irregular composite parts.
Neat cutting surface, effectively avoids stratification and peeling of multi-layer composite materials.
Intelligent auto nesting system optimizes layout to cut material wastage by over 10%.
Zoned high-strength vacuum firmly fixes thick laminated composites to prevent shifting during high-speed cutting.
Multi-functional tool head supports full cut, half cut, creasing and punching for diversified processing demands.
Wide compatibility with various soft composites, helping customers expand multi-category cutting business.
