Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1625P |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 7–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 120 sets per month |
Quick Detail:

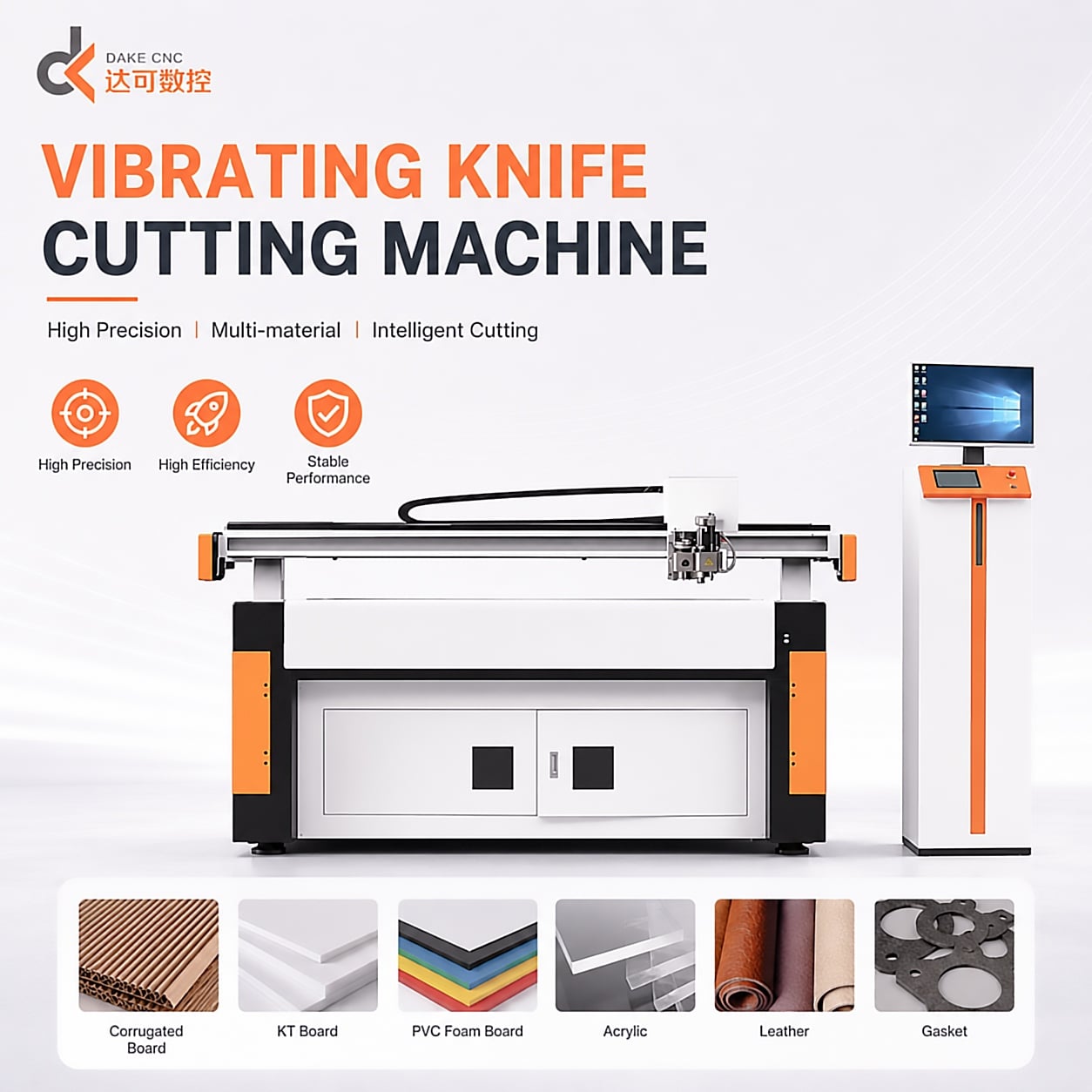

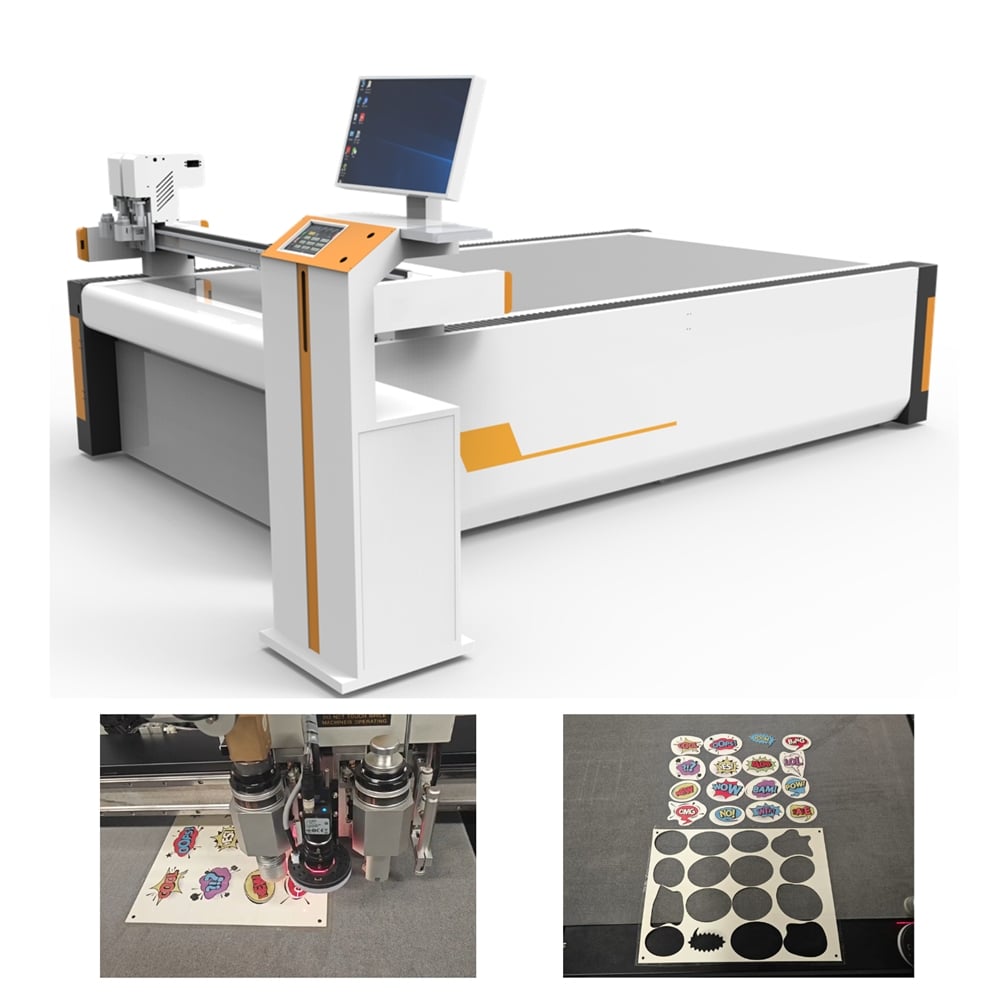

Full name: Packaging & Advertising Oscillating Knife Cutting Machine
Short names: CNC Advertising Cutter, Digital Packaging Sample Cutting Machine
Other: KT board cutter, foam packaging die-less cutting machine
Description:
This is a multi-functional cutting machine designed for the non-metallic materials industry. It can be used with different cutting tools to perfectly cut various materials.
Digital cutting is particularly well-suited for applications in the printing and dyeing industry, using the switching between high-frequency vibrating blades and pneumatic blades to achieve cutting materials from thin to thick.
Applications:

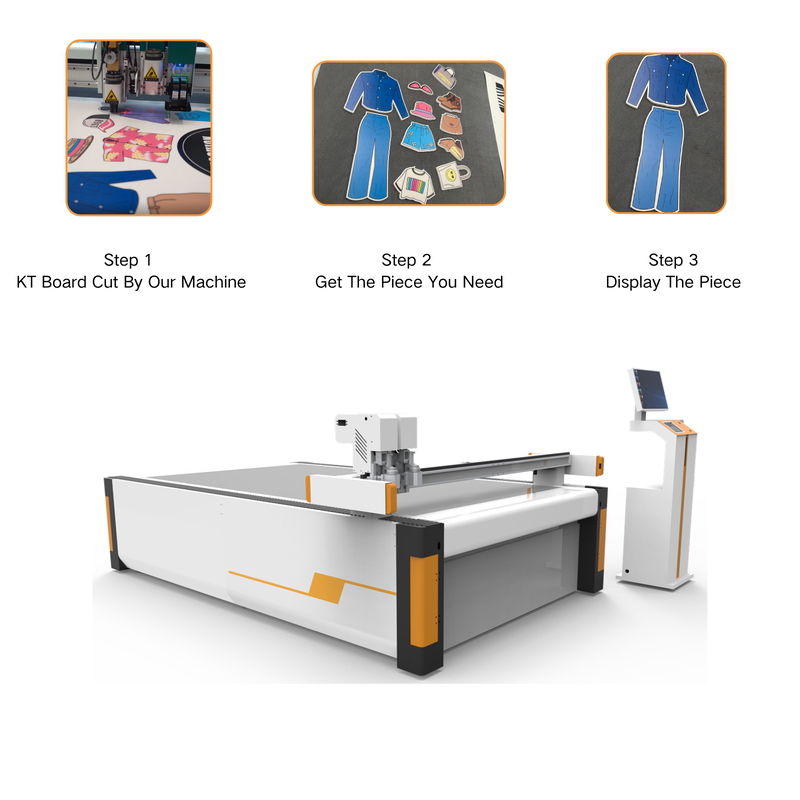

Advertising sector: KT board, PVC foam sheet, self-adhesive sticker, paper display signs and craft cardboard.
Packaging sector: corrugated cardboard, grey board, EPE pearl cotton, EVA foam insert, gift box inner lining and various protective cushion materials.
Specifications:
| Name | DK1625F |
| Features | Vibration knife Tool+Crease wheel Tool+Marking Pen |
| Working Table | Vacuum Flatbed Table |
| Effective Working | 1600*2500mm |
| Area | |
| Total Machine Power | 11KW |
| Speed Adjustment | 0~2000m/s |
| Cutting thickness | ≤30mm thicknesses can be customized according to the material |
| Control and Drive | Dual Drive / High-Speed DSP-Controlled Servo Motor 0–100% Manual and Software Control |
| System | Dake Custom System (Support Multi Languages LCD Screen) |
| Transmission system | Servo motor, linear guide rail, full rack |
| Cutting accuracy | ±0.01mm |
| Power | X-axis Motor power 400W, Each of the two motors on the Y-axis is 400W |
| Z-axis 100W, W-axis 100W |
Competitive Advantage:
No mould production cost, great for packaging sample development and small-batch customized production.
Smooth cutting edge without burr, no collapse or deformation on foam and paper products.
Intelligent nesting layout reduces raw material waste by more than 10%.
Zoned strong vacuum firmly fixes lightweight sheet and foam to prevent shifting during cutting.
Multi-functional tool head integrates cutting and creasing to realize one-step carton forming.
