Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1610 |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 7–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
1610 Laser Leather Cutter, Leather Laser Cutting Engraving Machine, CO2 Leather Laser Cutting Machine, 1600*1000mm Nonmetal Laser Cutter, Shoe & Bag Leather Laser Cutting Machine, Garment Leather Laser Engraver Cutter
Description:

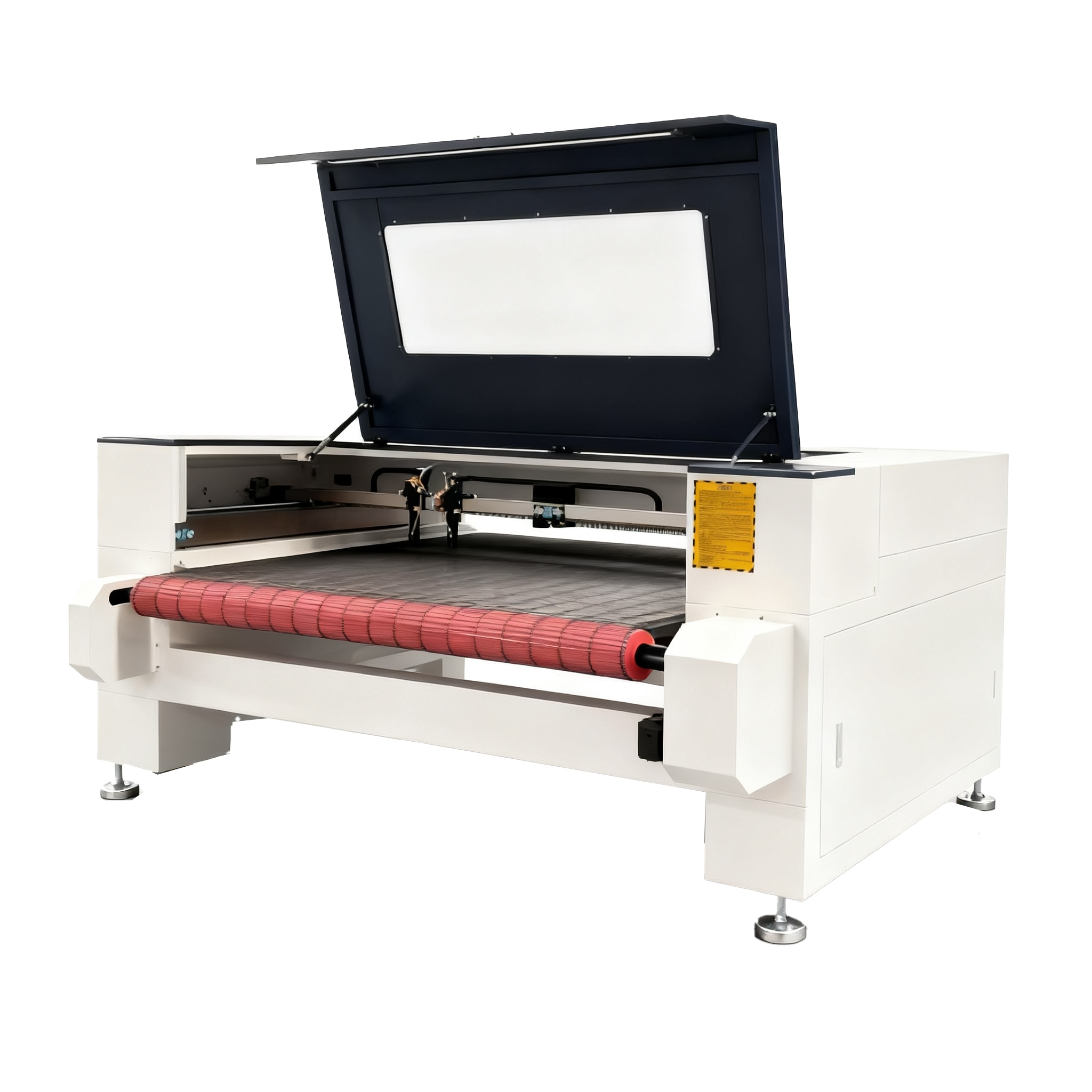

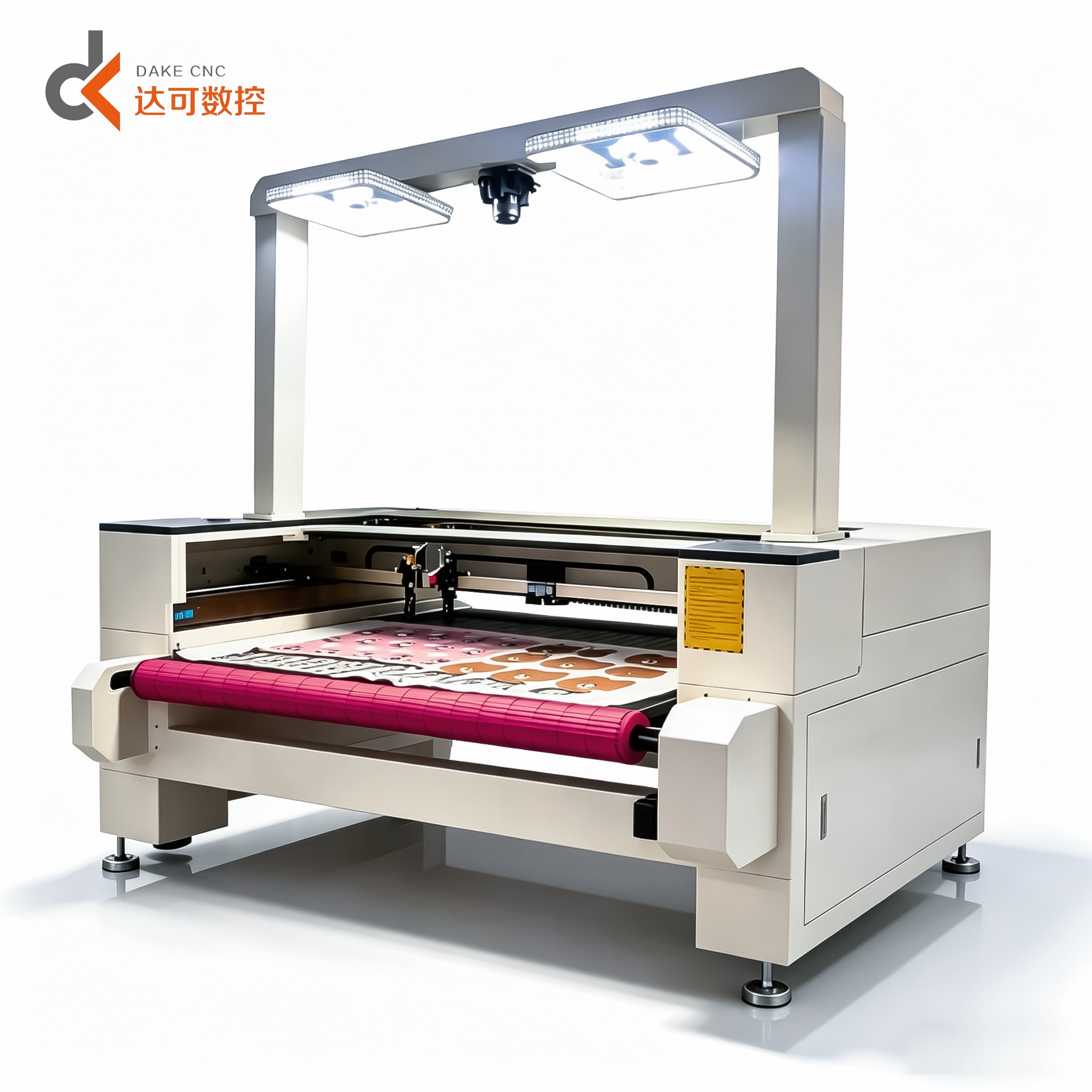

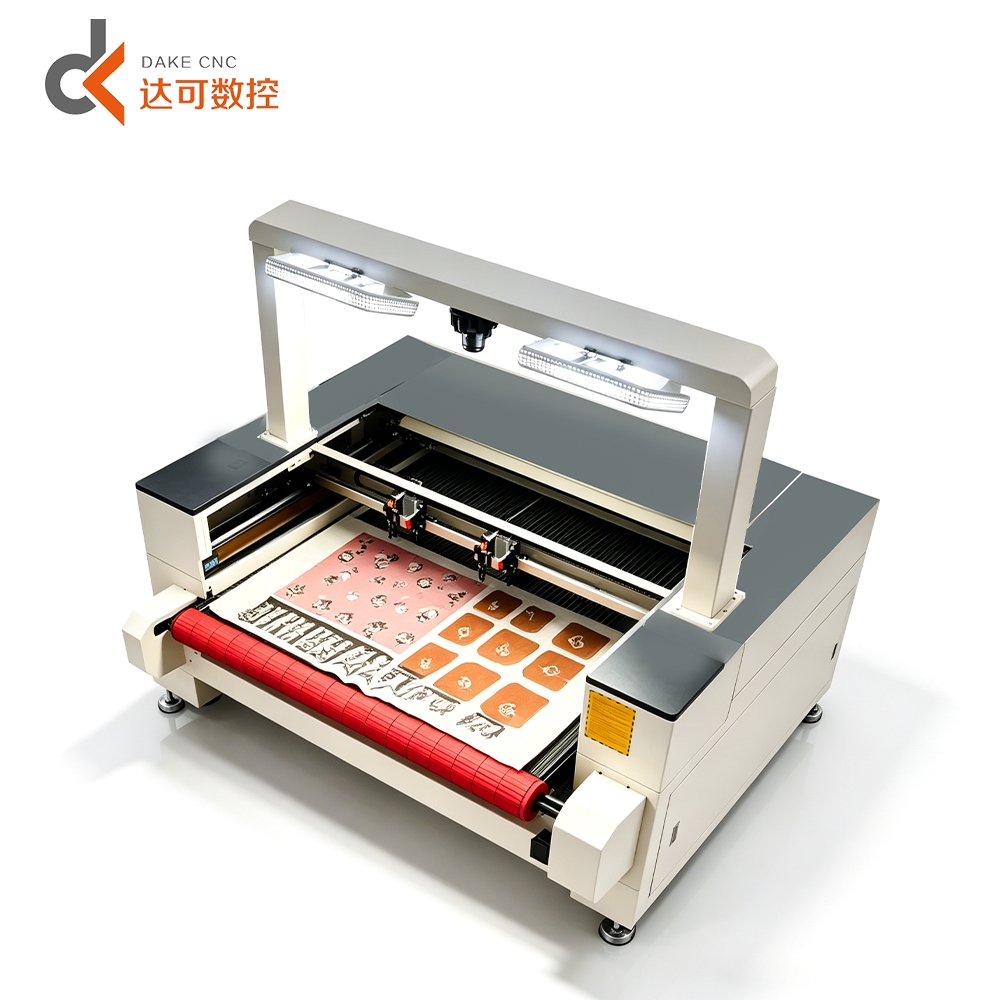

1610 Leather Laser Cutting Machine is a professional CO2 laser processing equipment specially optimized for leather cutting, engraving, perforation and hollow-out processing. With a standard 1600×1000mm large working area, this machine perfectly balances processing size and floor space, meeting the batch production and large-size workpiece processing needs of the leather industry. Equipped with high-stability CO2 laser tube and high-precision motion transmission system, the laser beam is concentrated with stable power output, realizing ultra-fine processing on various leather materials. Adopting non-contact laser processing technology, it completely avoids material extrusion, deformation, scratch and tool wear problems caused by traditional blade cutting. The machine is equipped with a high-efficiency vacuum adsorption platform, which can firmly fix flat leather, PU leather and thin flexible materials to prevent sliding and wrinkling during high-speed operation. The matched air blowing and smoke exhaust system effectively removes smoke and residue during leather processing, ensuring clean cutting edges without yellowing, charring or burrs. Supported by the mature Ruida intelligent control system, the machine supports multi-format file import, automatic graphic typesetting, nesting and continuous batch cutting. With solid industrial frame structure, stable operation and low failure rate, this equipment can work continuously for a long time, which is a dedicated high-efficiency processing machine for leather, footwear, luggage and garment accessory industries.
Applications:
This 1610 leather laser cutting machine is widely used in leather processing and multi-industry non-metal material cutting and engraving. In the footwear industry, it is mainly used for precision cutting, pattern engraving, hollow perforation and personalized customization of shoe uppers, insoles, shoe ornaments and casual shoe leather parts. In the luggage and leather goods industry, it processes genuine leather, PU synthetic leather, microfiber leather and recycled leather for handbags, wallets, belts, key pendants and leather decorative accessories. In the clothing and garment industry, it is applied for leather garment cutting, leather embroidery patches, hollow-out carving of clothing accessories and vintage leather pattern making. In the automotive interior industry, it is used for cutting and engraving automotive seat leather, door panel leather and interior decorative leather. Besides leather materials, the machine also supports processing of fabric, cotton, linen, non-woven fabric, acrylic, wood board, MDF, paper, rubber and other non-metal materials, covering diversified processing needs of crafts, gifts, advertising decorations and soft furnishing products.
Specifications:
| Machine model | 1610 /1810/1830 |
| Machine power | 80W/100W/130W/150W/180W |
| Processing size | 1600 x1000mm |
| Engraving speed | 0-48000mm/min |
| Cutting speed | 0-36000mm/min (depending on the material) |
| Positioning accuracy | ±0.01mm |
| Working platform | Crawler automatic feeding platform |
| Control system | ZY/RD is optional |
| Motor | Three-phase stepper motor |
| Cooling method | Water cooling |
| Supported file format | AI, BMP, DXF, DST, PLT |
| Voltage | 220V, 50HZ/60HZ (Customizable) |
| Machine size | 220x180x100cm |
Competitive Advantage:
The 1610 leather laser cutting machine has outstanding industry-specific advantages targeting leather processing. Firstly, it adopts professional leather laser parameter optimization scheme, which effectively solves common problems such as leather edge yellowing, hardening and rough cuts, delivering soft, smooth and non-deforming cutting edges with no need for secondary trimming. Secondly, the 1600×1000mm extended working area supports large-size whole-piece leather processing and multi-piece nested cutting, greatly improving material utilization and batch production efficiency. Thirdly, the high-strength vacuum adsorption platform is specially designed for flat leather materials, ensuring tight and flat material fixation and zero-error processing even during high-speed operation. Fourthly, compared with traditional punching and blade cutting machines, laser processing features higher flexibility, capable of completing complex hollow patterns, fine perforations and irregular shape cutting that traditional equipment cannot achieve. In addition, the equipment runs stably with low noise, low maintenance cost and long service life. The intelligent operation system is simple to learn and use, effectively reducing labor threshold and production cost. It is a cost-effective and multi-functional professional laser equipment for small and medium-sized leather processing factories.
