Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1625F |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 7–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Generic Standard Name: Automotive Interior Oscillating Knife Cutting Machine (Primary)
Industry Short Name: Car Interior Vibratory Knife Cutter / CNC Digital Flatbed Cutter
Segmented Product Names (by Application):
Technical Terminology:Reciprocating Blade CNC Cutter、Vibration Knife CNC Cutting System
Description:

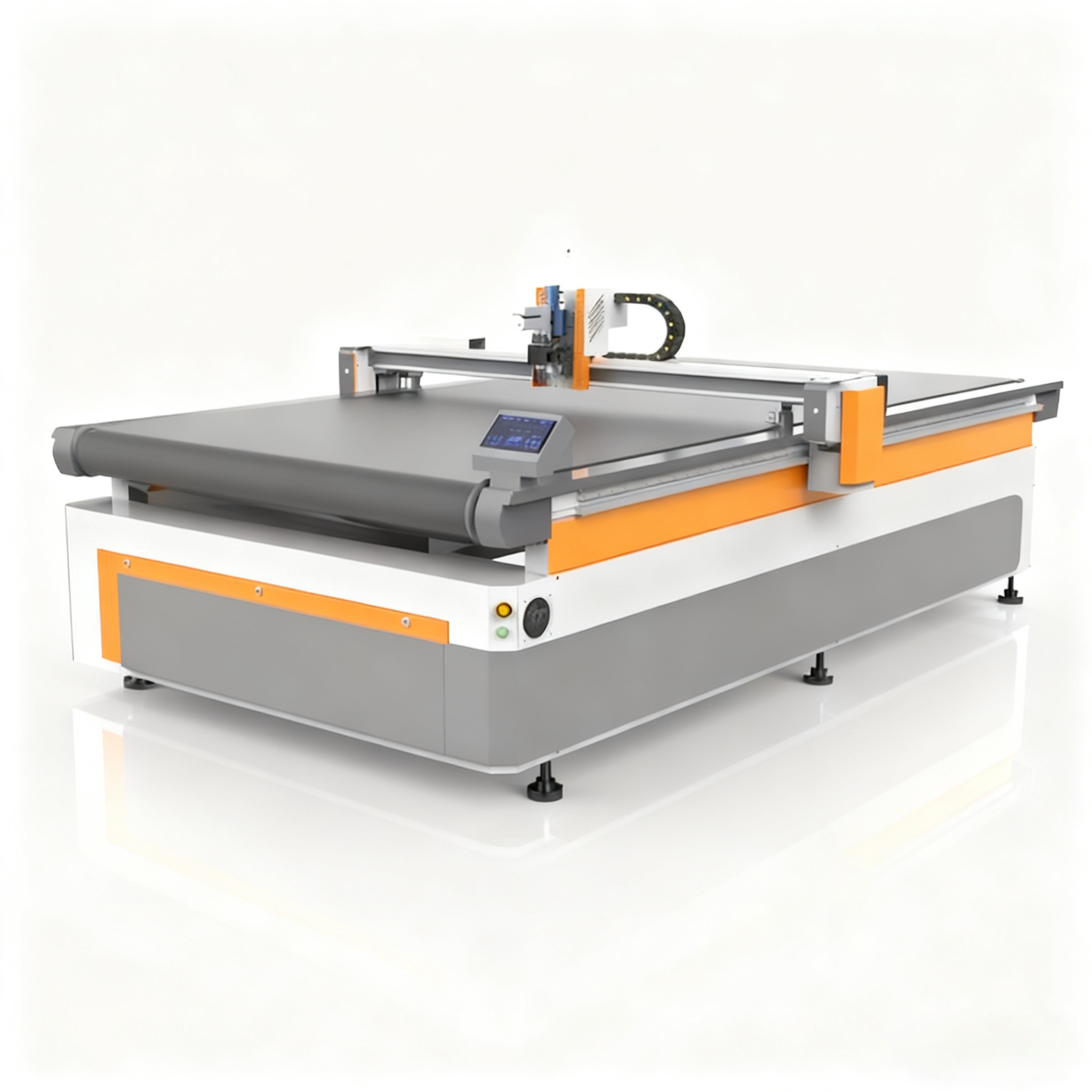

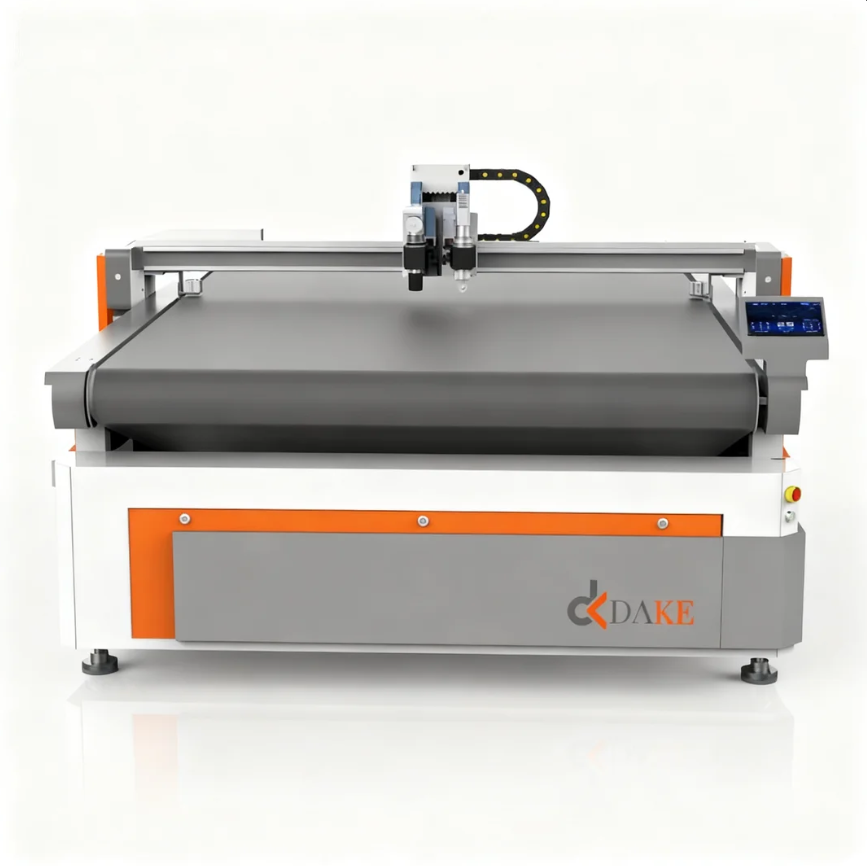

CNC oscillating knife cutting machine specially developed for automotive interior industry, equipped with high-frequency vibrating cutting head and segmented vacuum adsorption worktable. It adopts imported servo drive system and intelligent nesting software, no need for die cutting mold, realizing full cut, half cut, creasing and punching in one process. Compatible with various flexible composite materials, features high cutting precision, neat cutting edge and material saving, ideal equipment for customized and mass production of auto interior accessories
Applications:
Car floor mats, trunk mats, car seat covers, seat cushions, headrest leather, sun visor fabric, door panel wrapping leather, dashboard anti-slip mat, steering wheel cover, car interior sound insulation cotton, flame retardant felt, airbag cloth and various composite buffer materials.
Extended Industries
Leather seats, sofa upholstery, rubber gaskets, EPE foam, advertising materials and other flexible non-metal materials cutting.
Specifications:
| Name | DK1625/DK1825 Automatic Feeding Digital Knife Cutting Machine |
| Features | Vibration knife tool+Round knife tool |
| Punching+Marking pen | |
| Effective Working Area | 1600*2500mm |
| Total Machine Power | 11KW |
| Speed Adjustment | 0~2000m/s |
| Control and Drive | Dual Drive / High-Speed DSP-Controlled Servo Motor –100% Manual and Software Control |
| System | Dake Custom System / Ruida System (Support Multi Languages LCD Screen) |
| Transmission system | Servo motor, linear guide rail, full rack |
| Cutting accuracy | ±0.01mm |
| Power | X-axis Motor power 400W, Each of the two motors on the Y-axis is 400W |
| Z-axis 100W, W-axis 100W |
Competitive Advantage:
No cutting die required, save mould development cost and shorten small-batch production lead time, fit custom & bulk orders flexibly.
High precision & clean cutting edge: Cutting tolerance ±0.01mm, no burr, improve finished product quality.
Intelligent nesting software, auto layout to save raw material by over 10% and reduce production cost.
Multi-function cutting head: Support full cut, half cut, creasing, punching with optional round knife, pneumatic knife and marking pen.
Segmented vacuum suction table, firm fixation for sheet & roll materials without shifting during high-speed cutting.
Stable imported servo motor, adjustable cutting speed 100–1800mm/s, high production efficiency.
Wide material compatibility, one machine available for auto interior, leather, foam, upholstery and gasket cutting to expand customer business.
