Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1625FA |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 12–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Generic Standard Name ：Oscillating Knife Fabric Cutting Machine
Industry Short Name ：CNC Fabric Cutter、Digital Textile Cutting Machine
Segmented Product Names ：Multi-layer Cloth Cutting Machine、Upholstery Fabric Cutting Equipment
Description:

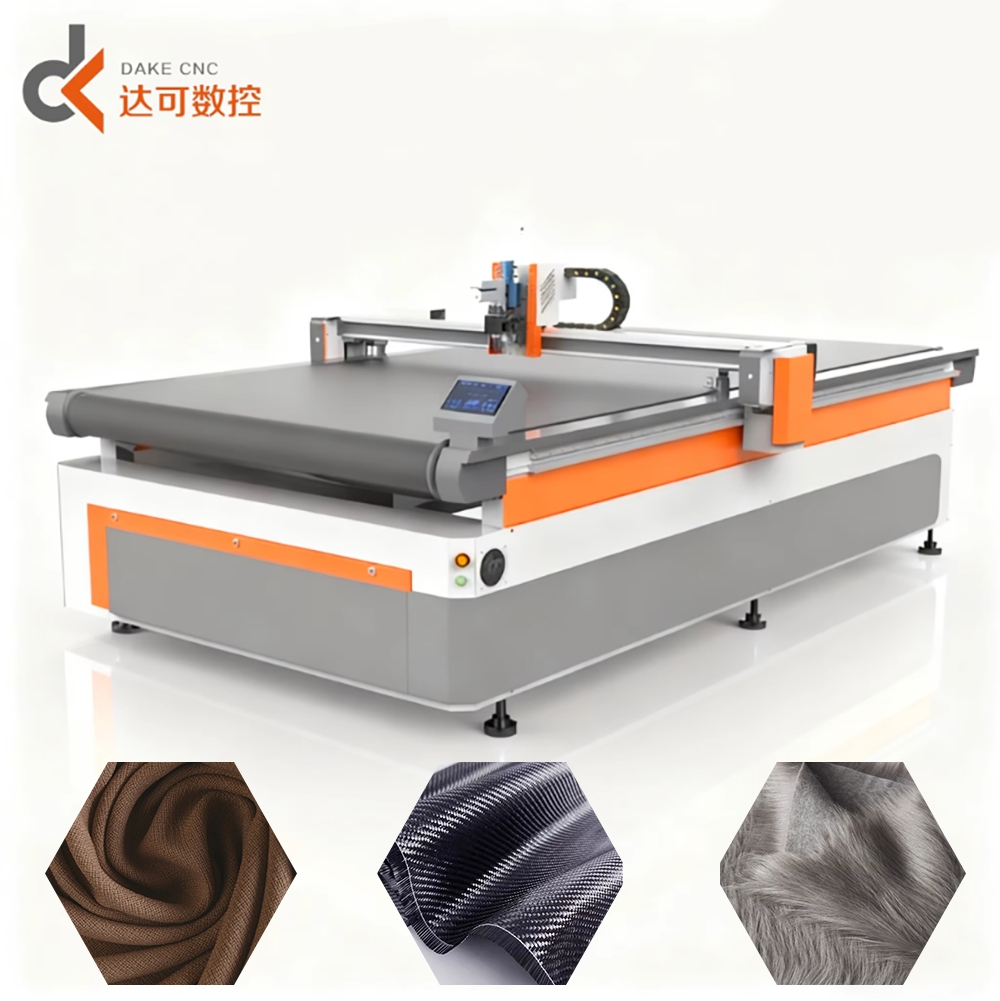

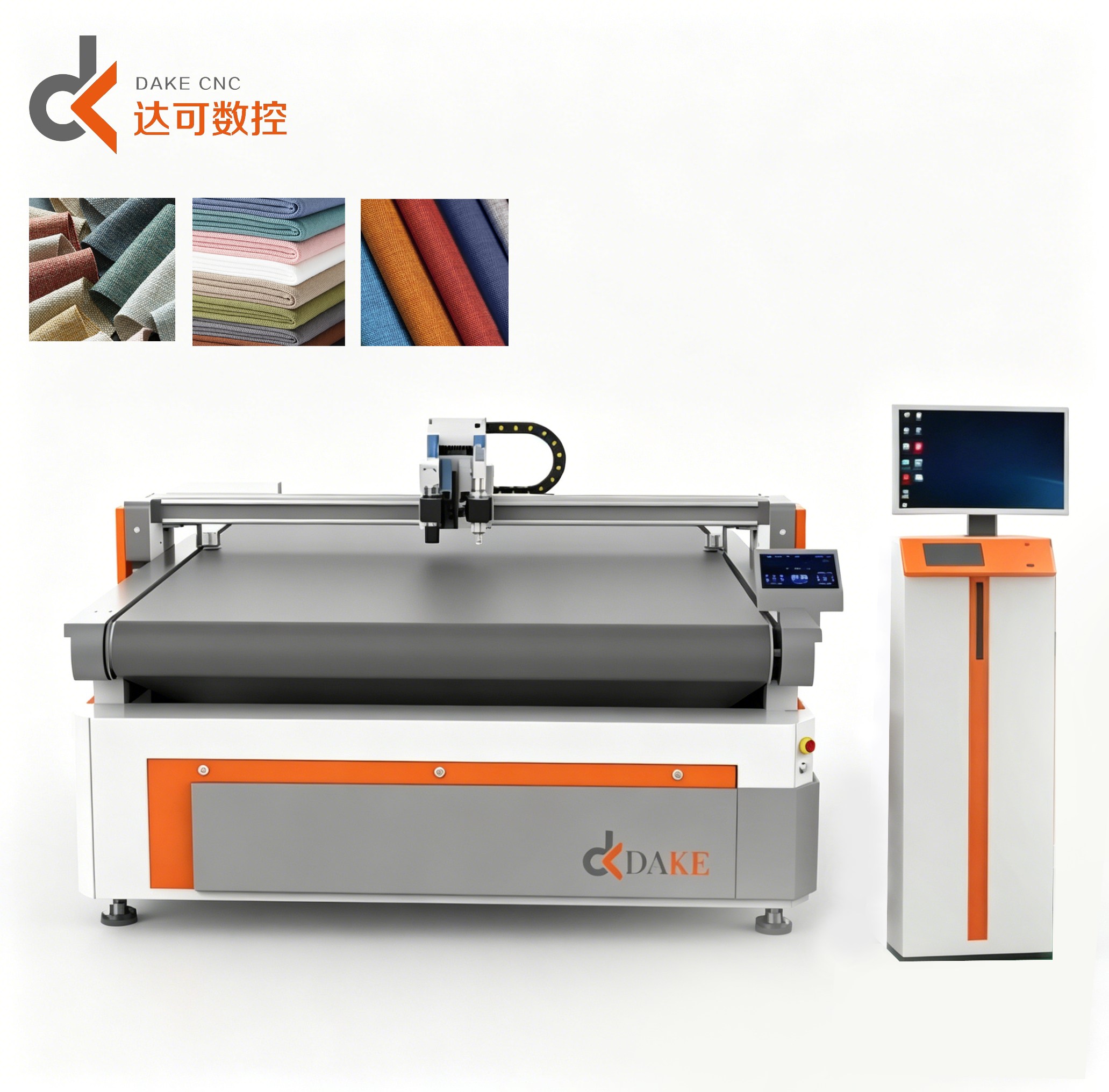

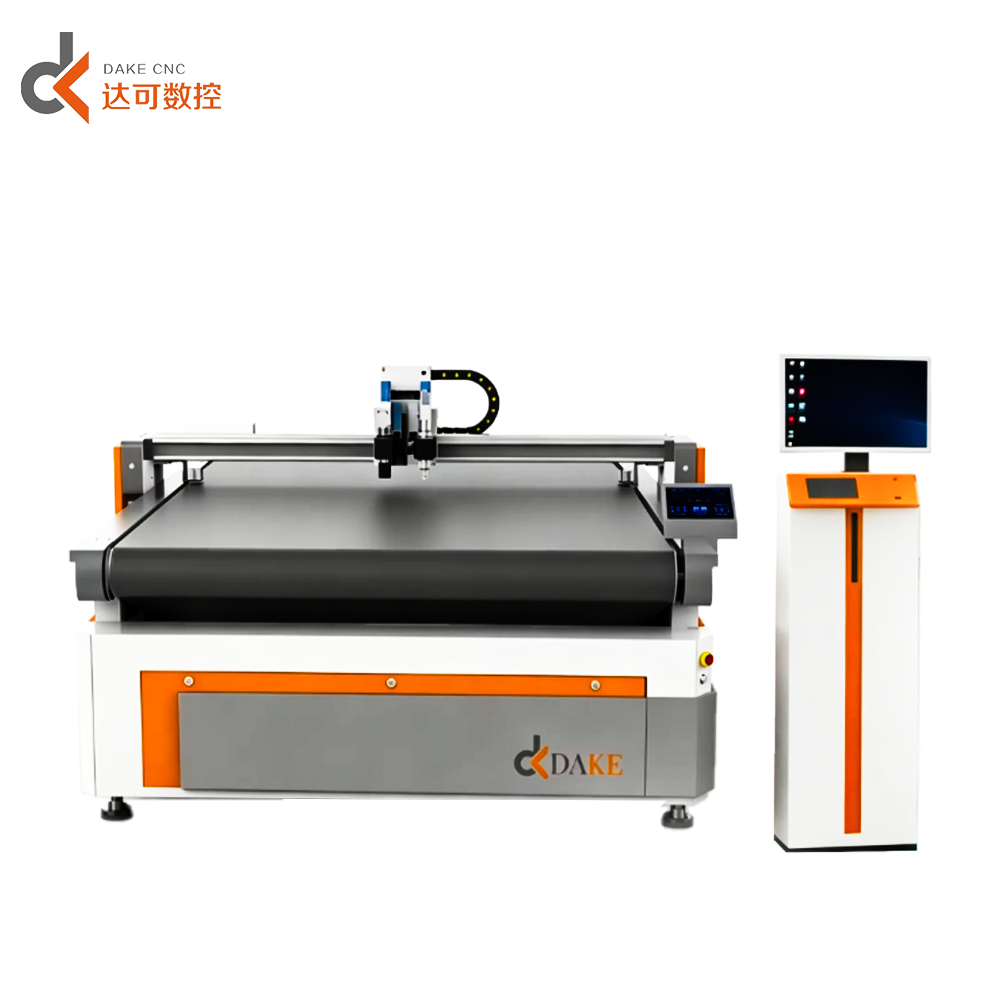

CNC oscillating knife fabric cutting machine is specially developed for all kinds of woven, knitted and composite textiles. Equipped with high-frequency oscillating cutter head, partition vacuum adsorption table and high-stability servo control system, matched with intelligent automatic nesting software. No cutting mould needed, it can complete full cutting, half cutting, creasing and punching in one working cycle with smooth cutting edge without loose threads.
Applications:
Garment industry: various apparel fabrics, shoe upper cloth, protective clothing non-woven fabric.
Home textile: sofa fabric, curtain cloth, bedding fabric, plush toy raw material.
Auxiliary processing: luggage lining cloth, all kinds of flexible composite textile materials.
Specifications:
| Name | DK1625FA | DK1825FA |
| Effective Working | 1600*2500mm | 1800*2500mm |
| Area | ||
| Features | Oscillation Knife Tool+Round Knife Tool | |
| Punching tool+Marking Pen | ||
| Total Machine Power | 11KW | |
| Small multi-layer cutting | ≤30mm | |
| Speed Adjustment | 0~2000m/s | |
| Control and Drive | High-Speed DSP-Controlled Servo Motor | |
| System | Dake Custom System / Ruida System (Multi languages LCD Screen) | |
| Nesting software | BOKE | |
| Transmission system | Belt | |
| Cutting accuracy | ±0.01mm | |
| Power | X-axis Motor power 400W, Each of the two motors on the Y-axis is 400W | |
| Z-axis 100W, W-axis 100W | ||
Competitive Advantage:
No cutting dies required, effectively saves mold production cost and shortens lead time for small-batch customized orders.
Clean cutting edge without loose yarn or fraying, greatly improves finished fabric quality.
Intelligent automatic nesting software optimizes layout to reduce raw material waste by more than 10%.
Zoned strong vacuum adsorption firmly fixes soft & fluffy fabric to prevent displacement during high-speed cutting.
Multi-function cutting head supports full cut, half cut, creasing and punching to satisfy diverse processing needs.
Wide adaptability for multiple textiles, enabling customers to process different products with one single machine.
