Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1625 |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 7–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Standard: Sports Equipment Oscillating Knife Cutting Machine
Alias: Sports Mat CNC Cutter, EVA Foam Sports Gear Cutting Machine, Fitness Accessories Die-less Cutting Equipment
Description:

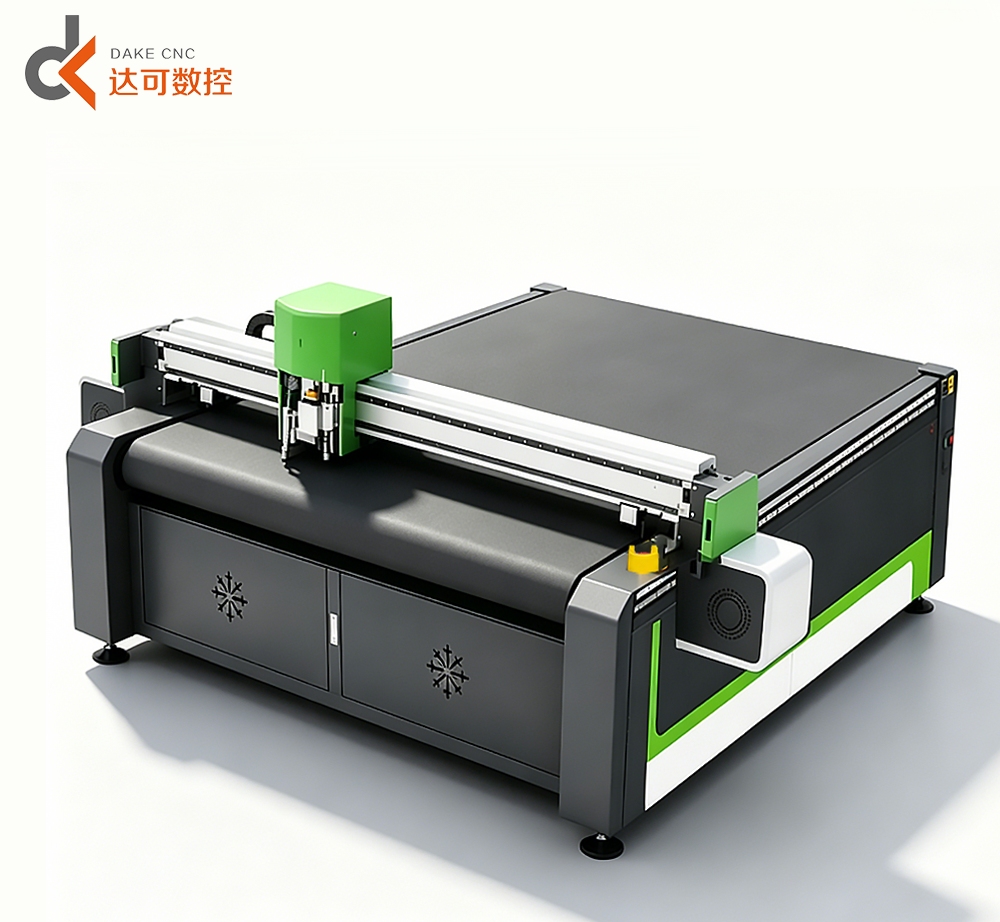

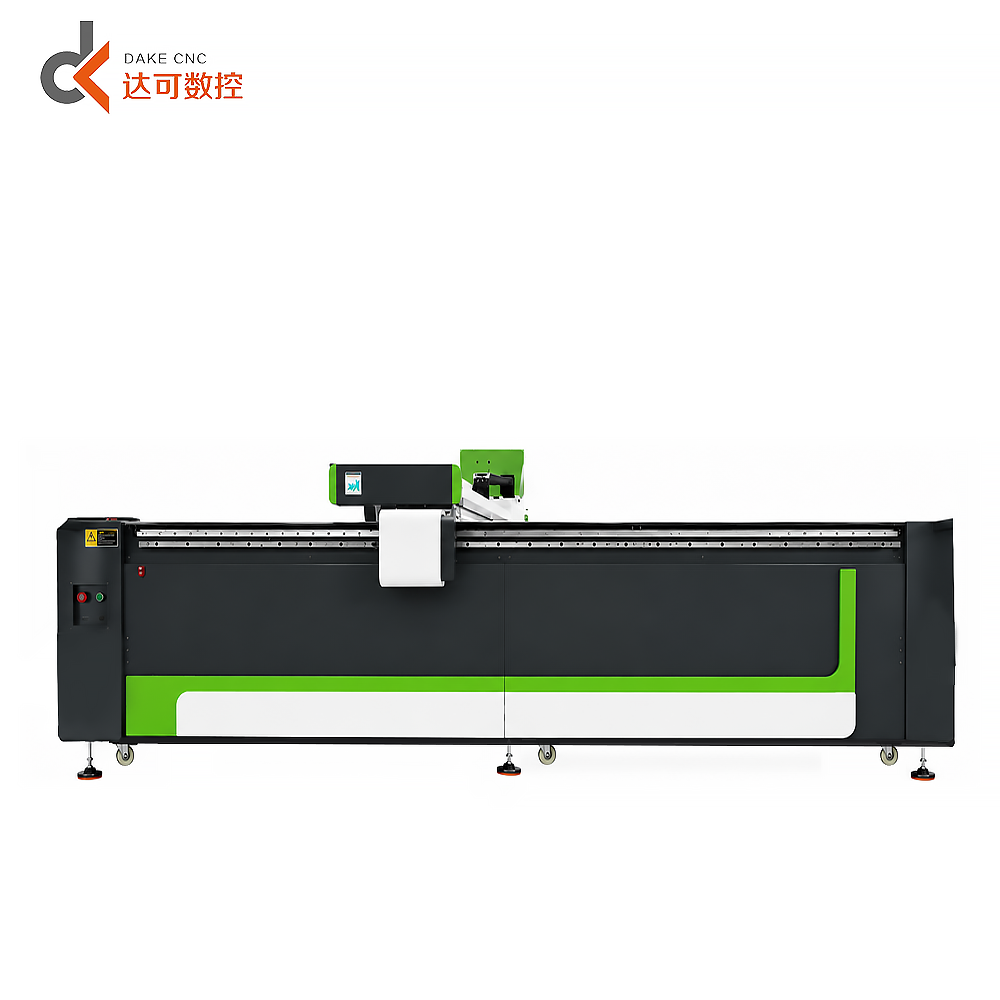

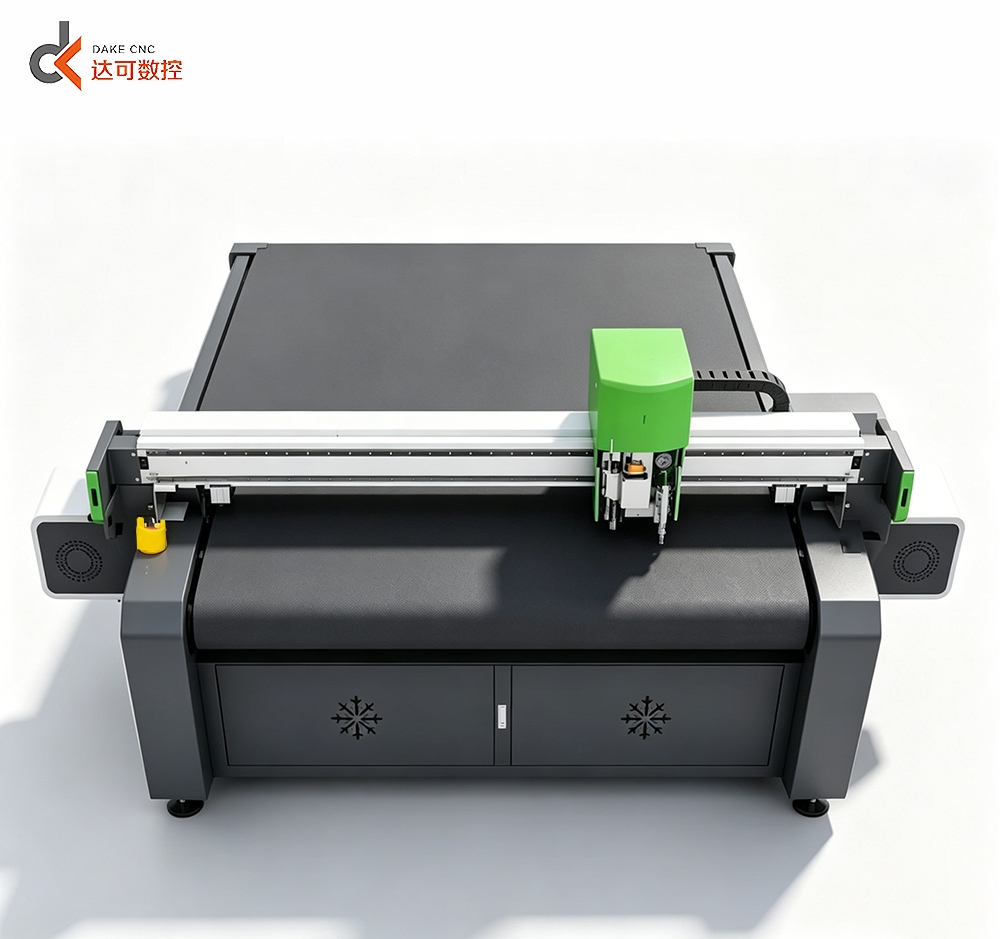

CNC oscillating knife sports equipment cutting machine is professionally tailored for neoprene, EVA, XPE, SBR and various composite materials for sports products. Equipped with high-frequency oscillating cutting head, partition high-power vacuum worktable and stable servo driving system, matched with intelligent automatic nesting software. Die-free cutting realizes full cut, half cut and punching in one forming, with tidy incision free of foam collapse and composite delamination.
Applications:
Fitness products: EVA, NBR yoga mats, outdoor camping moisture-proof pads and various fitness cushions.
Sports protective gear: martial arts protective pads, knee & elbow guard liners, neoprene sport gloves and waist support inner padding.
Other accessories: frisbee foam inserts, various elastic composite fabric fittings for sporting goods.
Specifications:
| Name | DK1625/DK1825/DK2030 |
| Features | Auto vacuum feeding table |
| Effective Working | 1800*2500mm |
| Area | |
| Cutting thickness | Under 100mm |
| Total Machine Power | 11KW |
| Speed Adjustment | 0~2000m/s |
| Control and Drive | Dual Drive / High-Speed DSP-Controlled Servo Motor 0–100% Manual and Software Control |
| System | Dake Custom System / Ruida System (Chinese and English LCD Screen) |
| Transmission system | Imported Servo motor, linear guide rail, full rack |
| Cutting accuracy | ±0.01mm |
| Power | X-axis Motor power 400W, Each of the two motors on the Y-axis is 400W |
| Z-axis 100W, W-axis 100W |
Competitive Advantage:
No cutting dies needed, saving mold expense and fitting customized small-batch sports goods production.
Flat cutting edge avoids foam shrinkage and peeling of laminated neoprene materials.
Auto nesting optimizes layout and cuts raw material loss by over 10%.
Powerful vacuum firmly fixes elastic foam and stretch composite to avoid shifting during high-speed cutting.
Multi-functional cutter head fulfills diversified cutting requirements of different thickness sports accessories.
