Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1630SA |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 13–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Standard：Sound-Absorbing Board Oscillating Knife Cutting Machine
Alias：Acoustic Panel CNC Cutter, Noise Reduction Foam Cutting Machine, Polyester Fiber Board Cutting Equipment
Description:

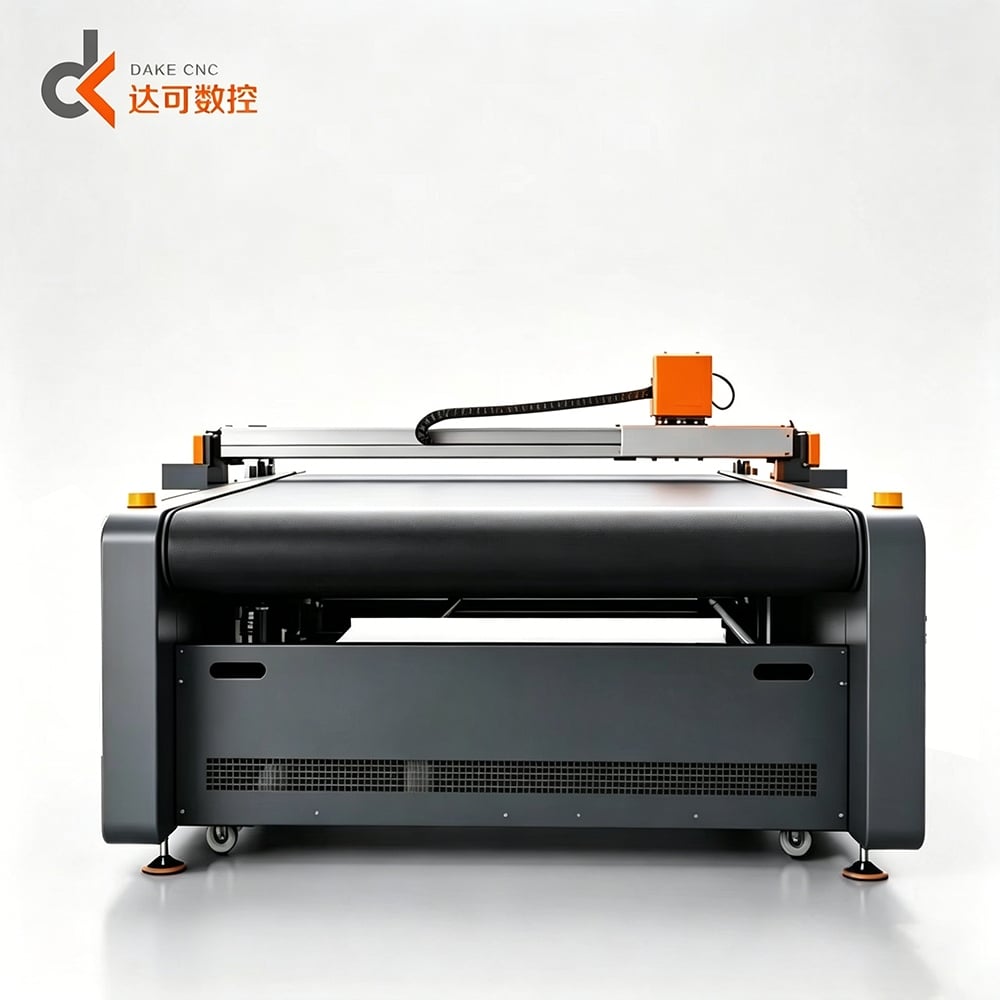

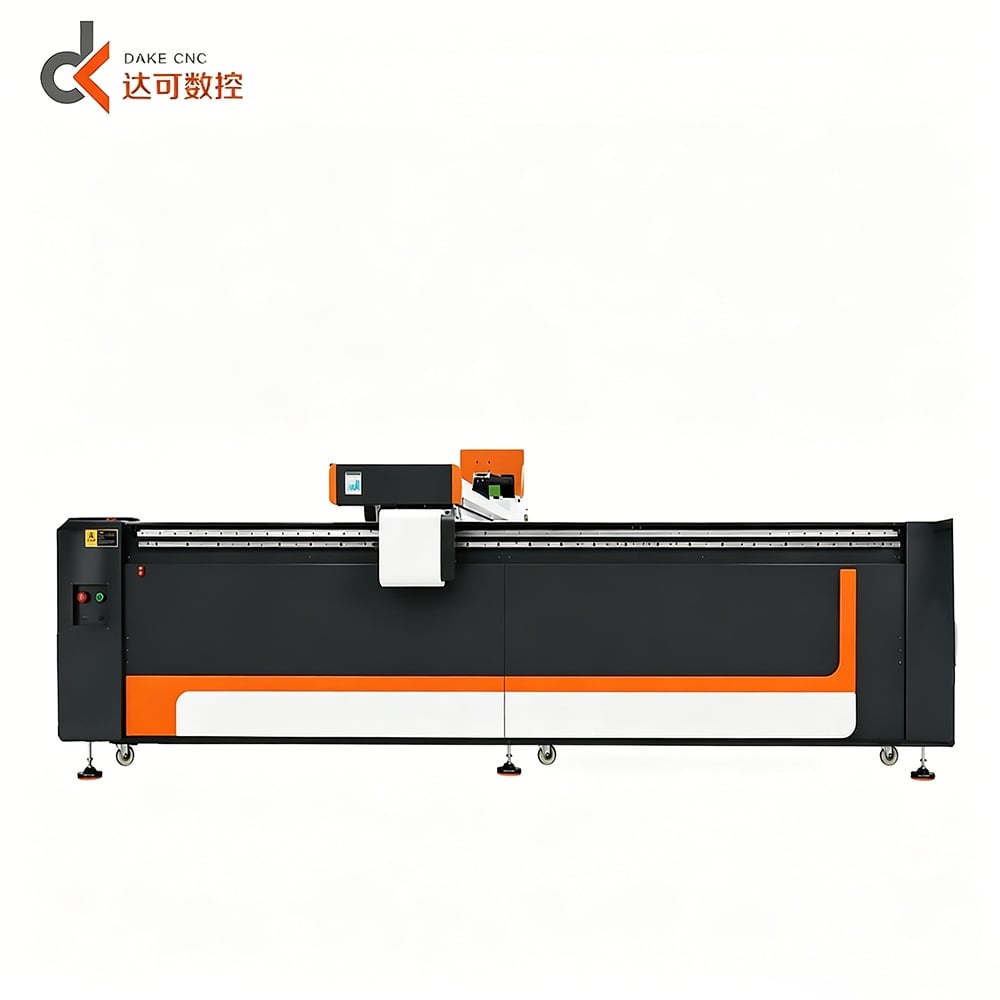

CNC oscillating knife sound-absorbing board cutting machine is developed for all kinds of acoustic & noise reduction materials. Fitted with high-frequency vibrating cutter head, segmented high-power vacuum table and reliable servo driving system with intelligent nesting software. No cutting dies needed, one-step completion of full cut, half cut and punching, clean incision without edge collapse of porous sound-absorbing materials.
Applications:
Indoor decoration: polyester fiber acoustic panel, wall decorative sound absorption sheet for KTV, office and home decoration.
Noise reduction industry: pyramid foam, egg crate sponge, rubber soundproof felt for equipment room and mechanical shock absorption.
Auto accessory: vehicle interior sound insulation cotton and composite damping gasket cutting.
Specifications:
| Name | DK1630SA |
| Features | Vacuum Flatbed Table |
| Working Area | 1600*3000mm |
| Heads | Vibration knife tool+V cut tool |
| Spindle power tool Optional | |
| Total Machine Power | 11KW |
| Speed Adjustment | 0~1800m/s |
| Cutting Thickness | ≤50mm (cusomized) |
| System | RD System (Multi Languages LCD Screen) |
| Transmission system | Imported Servo motor, linear guide rail, full rack |
| Cutting accuracy | ±0.01mm |
| Material fixing method | Vacuum partition adsorption 5 zones |
| safety devices | Safety devices use infrared sensing, safe and reliable |
| Support Format | DXF PLT AI XML PDF |
Competitive Advantage:
Die-free processing, suitable for customized irregular acoustic panel small-batch orders.
Stable cutting effect, effectively avoid foam collapse and fiber loose at cutting edge.
Auto nesting optimizes layout and saves raw material over 10%.
Powerful vacuum fixes light fluffy acoustic board tightly to prevent displacement.
Diversified cutter options meet different thickness sound-absorbing board cutting requirements.
