Product General Information
| Place of Origin: | China |
| Brand Name: | Dake |
| Model Number: | DK1070S |
| Certification: | CE |
Product Terms & Conditions
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood case with foam protection |
| Delivery Time: | 7–15 working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
Quick Detail:
Generic Standard Name ：Oscillating Knife Digital Cutting Machine
Industry Short Name ：CNC Cutting Plotter ,Digital Knife Cutting Machine
Segmentation：Small Packing Cutting Machine、Sticker Die-less Cutter
Description:

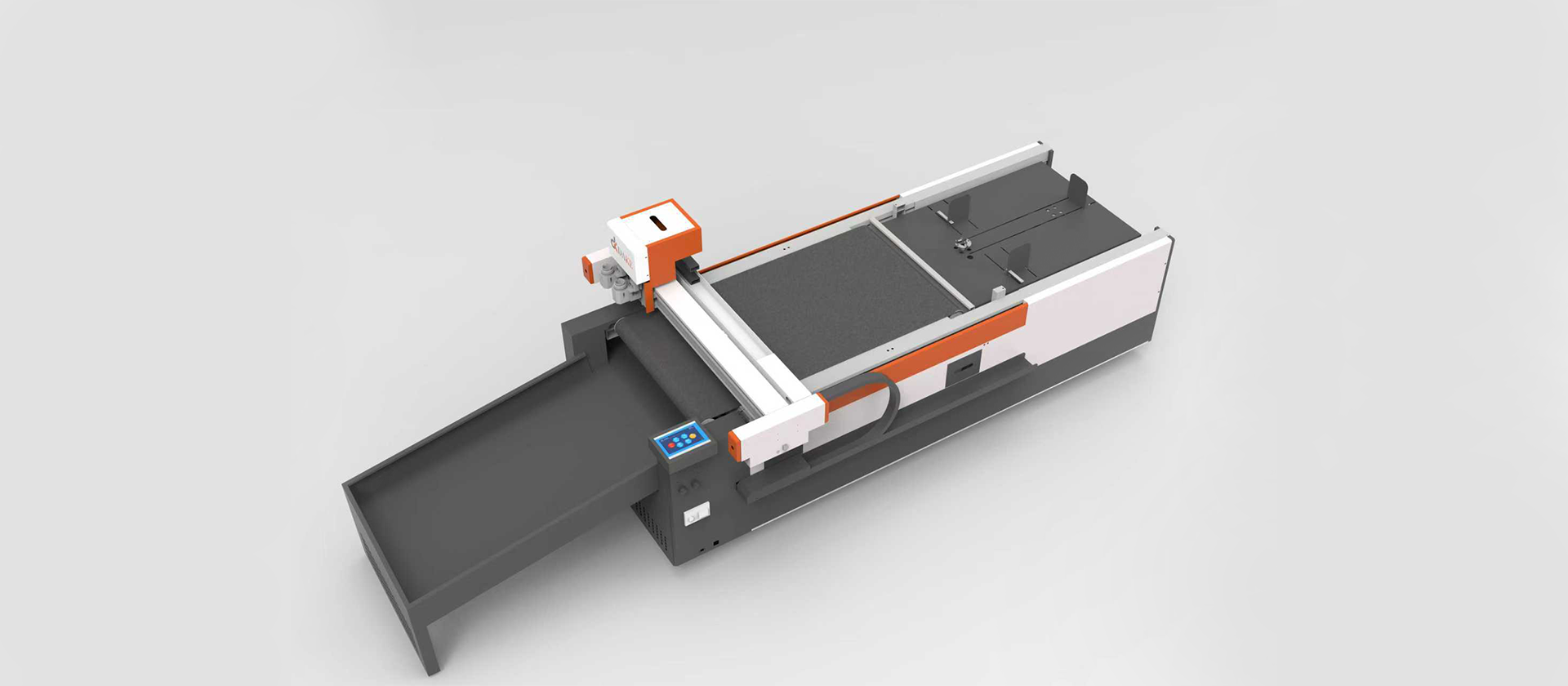

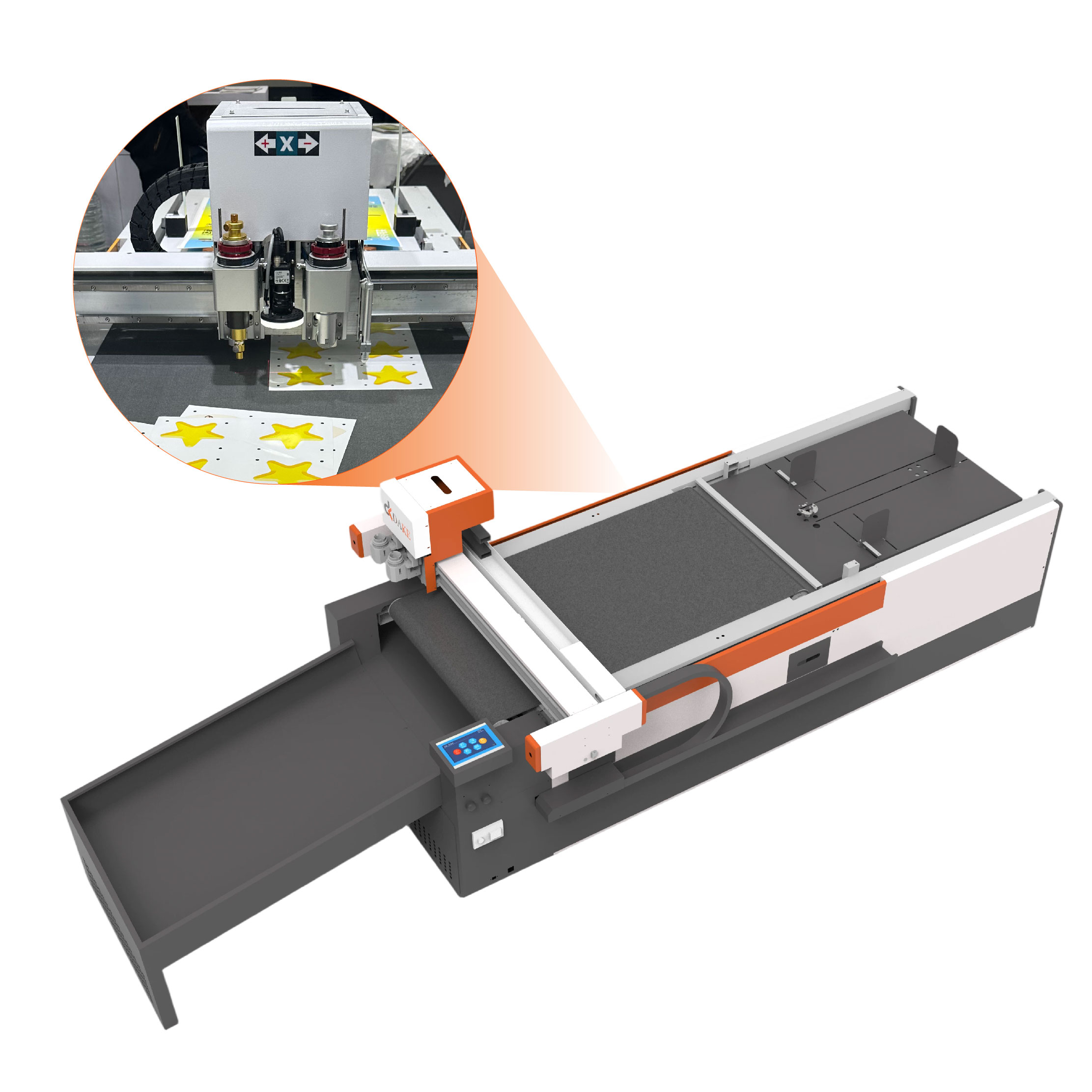

The CNC oscillating knife cutting machine is designed for various small advertising and packaging materials. It is equipped with a high-frequency oscillating cutting head, a zoned vacuum adsorption platform, a stable servo drive system, and intelligent automatic layout software. Without molds, it can complete full cuts, half cuts, and creasing in one pass, producing neat and aesthetically pleasing edges.
Applications:
Advertising sector: KT board, PVC foam sheet, self-adhesive sticker, paper display signs and craft cardboard.
Packaging sector: Carton,Gift box,cardbaord,PP Board, grey board, EPE pearl cotton, EVA foam insert, gift box inner lining and various protective cushion materials.
Specifications:
| Model | DK9060 | DK1070 |
| Effective Working Area(in mm/in) | 600x900mm/23.6"x35.4" | 700x1000mm/25.6"x39.4" |
| Multi-Function Tool | Electric Oscillating Tool; | |
| Creasing Tool; | ||
| V-cutting Tool; | ||
| Kiss cut Tool; CCD Camera; | ||
| (Tools Equipment Based On Your Materials ) | ||
| Safety Devices | Yes | |
| Cutting Speed | 0-1400mm/s (According to the material) | |
| Cutting Thickness | <30mm (According to the material) | |
| Repeat Accuracy | ≤0.1mm | |
| Applicable Materials | Cardboard, Gift box, Kraft Paper ,sticker,plastic film etc | |
| Material Fixing Method | Partition Adsorption | |
| Transmission Port | Network Port | |
| Transmission System | Servo Motor, Linear Guide, Grinding Racks/ Precision Belts | |
| Supported file formats: | AI, PLT, DXF, PDF, PCE, XML | |
Competitive Advantage:
No mould cost required, ideal for small-batch customized leather production.
Neat incision avoids leather crack, effectively upgrading finished product quality.
Intelligent nesting raises leather utilization rate and cuts waste by over 10%.
Strong vacuum firmly fixes slippery leather to prevent shifting during high-speed cutting.
Multi-tool configuration supports cutting, creasing and punching to fulfill diversified processing demands.
